2020-21 Hyola XC Technology IMI Residue Trial Results Guide
2020-21
2020-21 Hyola XC Technology IMI Residue Trial Results Guide
2020-21

Download The

2020-21 Hyola XC Technology IMI Residue Trial Results Guide
This presentation guide provides results on detailed research relating the additional financial value for growers and flexibility that XC dual-stacked technology offers over single trait technologies such as Clearfield, TruFlex or Triazine Tolerant varieties.
Abstract light blue and white geometric background with curved and diagonal shapes
Mostly white image with a thin black horizontal line near the bottom and a black strip along the bottom edge
Abstract light blue and white geometric background with curved and diagonal shapes
Mostly white image with a thin black horizontal line near the bottom and a black strip along the bottom edge

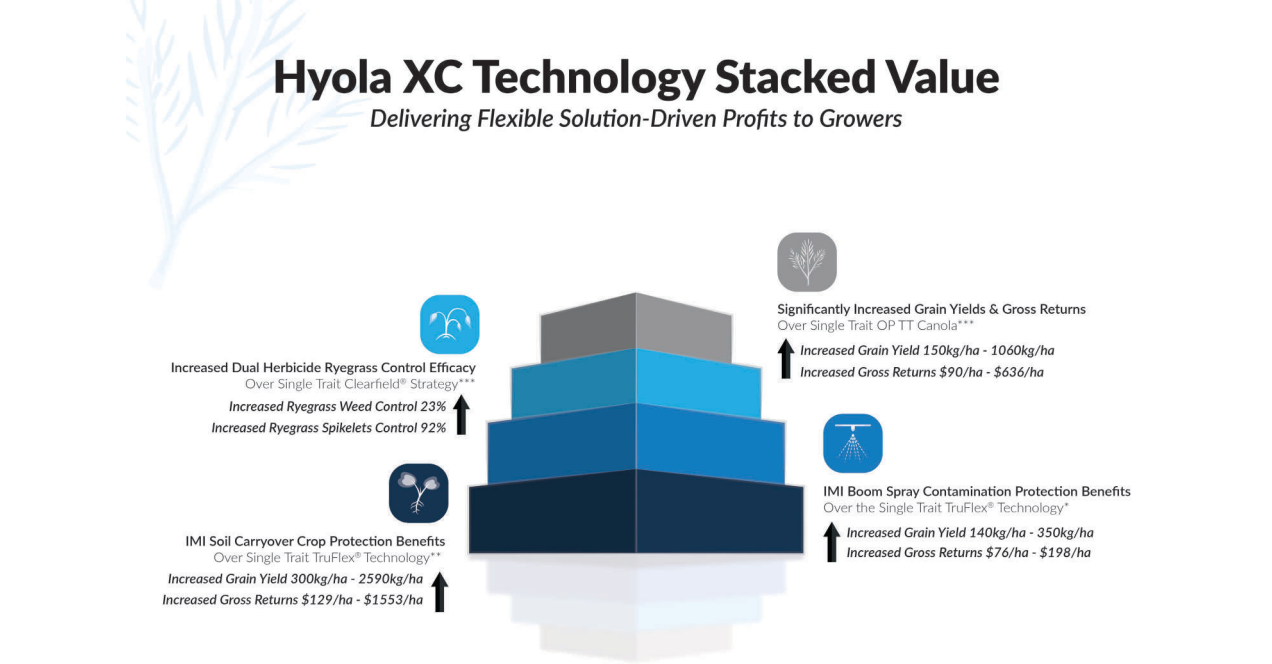

Hyola XC Technology Stacked Value infographic with layered blue blocks and feature callouts

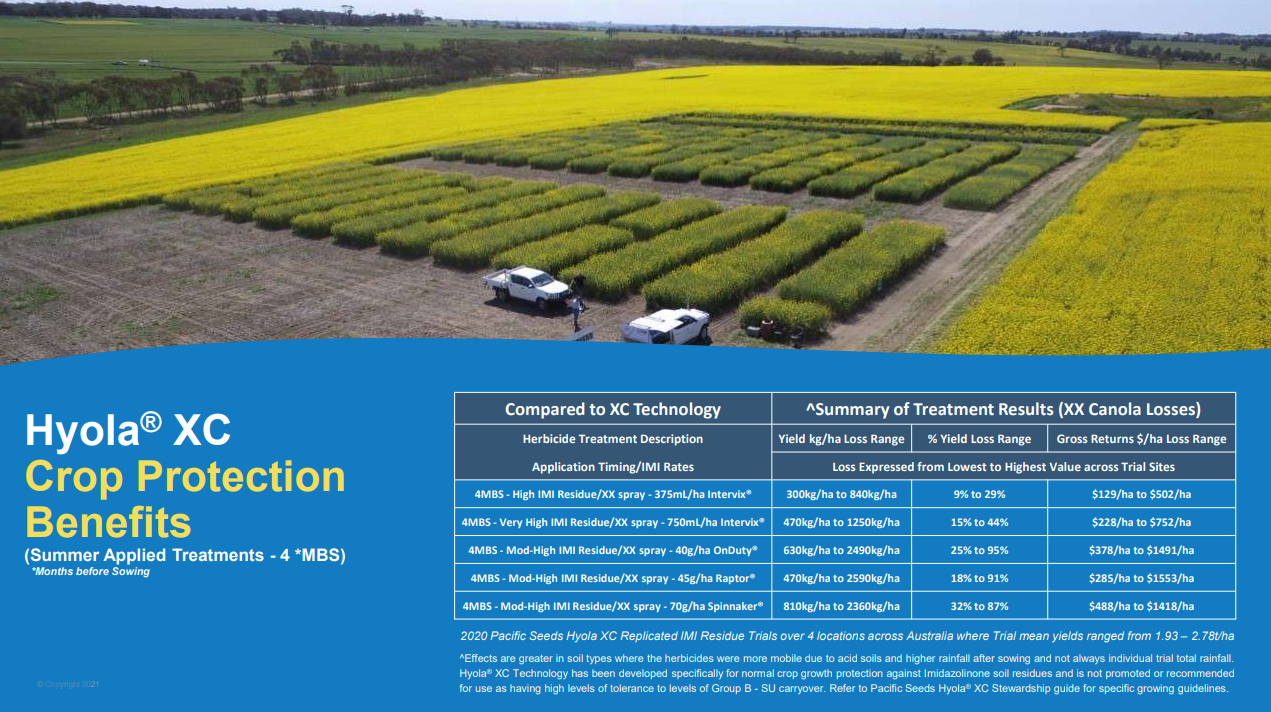

Hyola XC crop protection benefits over aerial view of yellow and green agricultural fields

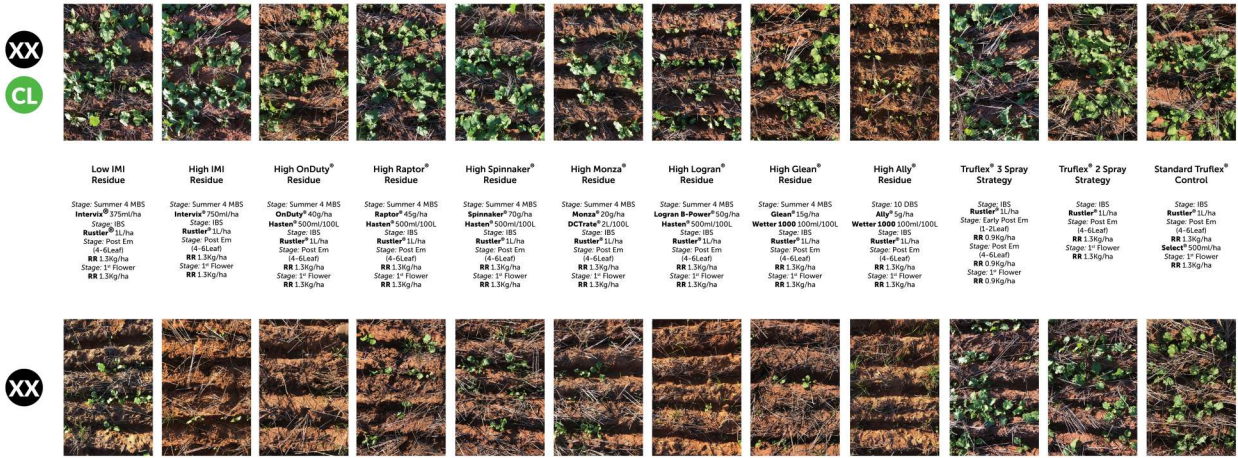

Grid of small plant photos with labels, showing green and brown foliage samples on a white background

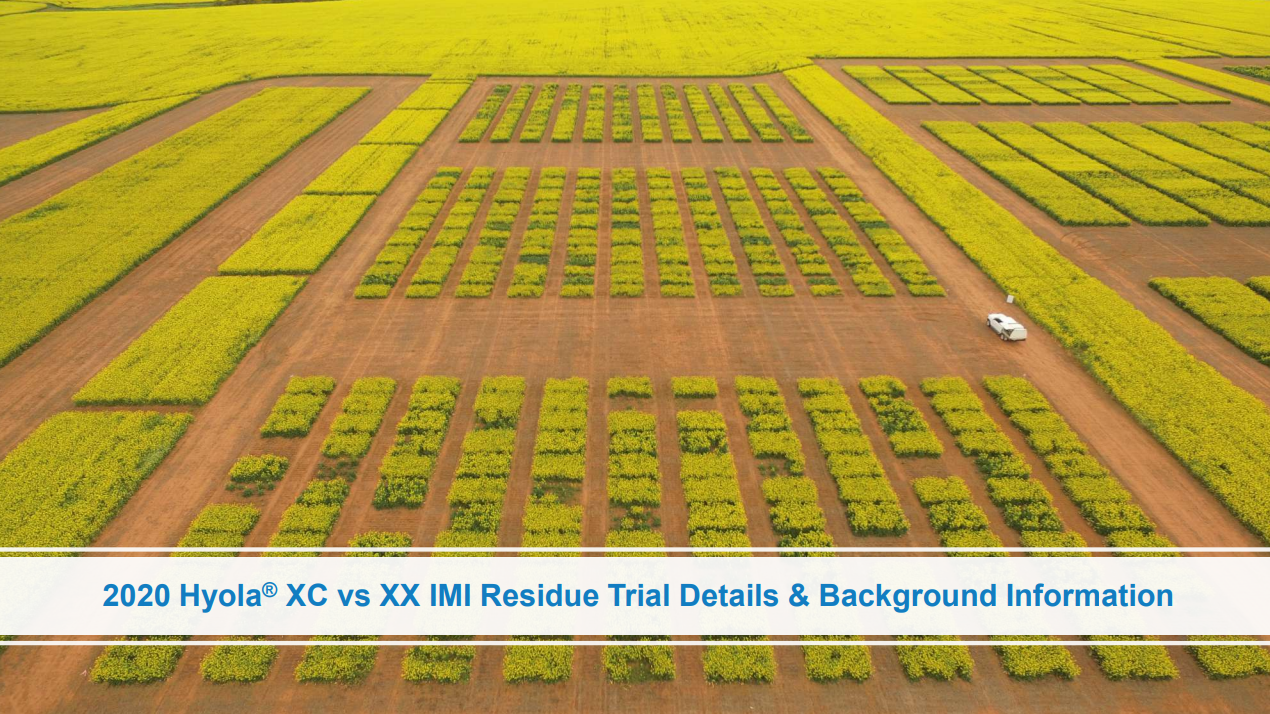

Aerial view of experimental crop plots in a field with a caption banner at the bottom

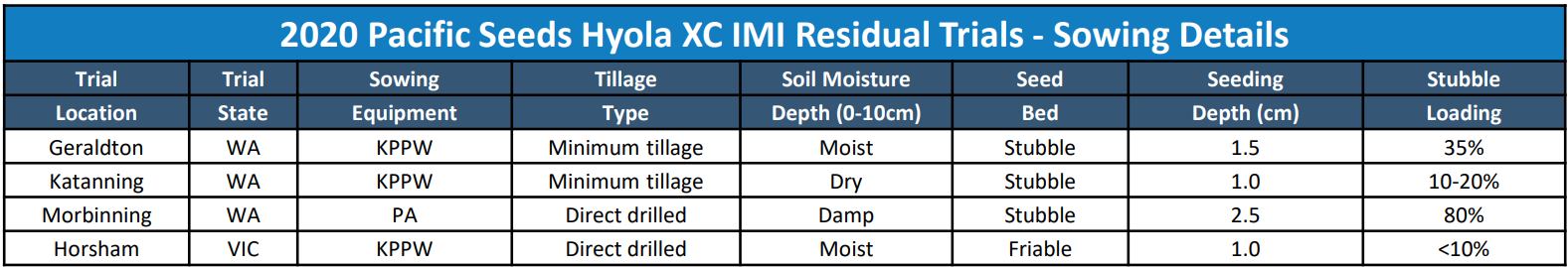

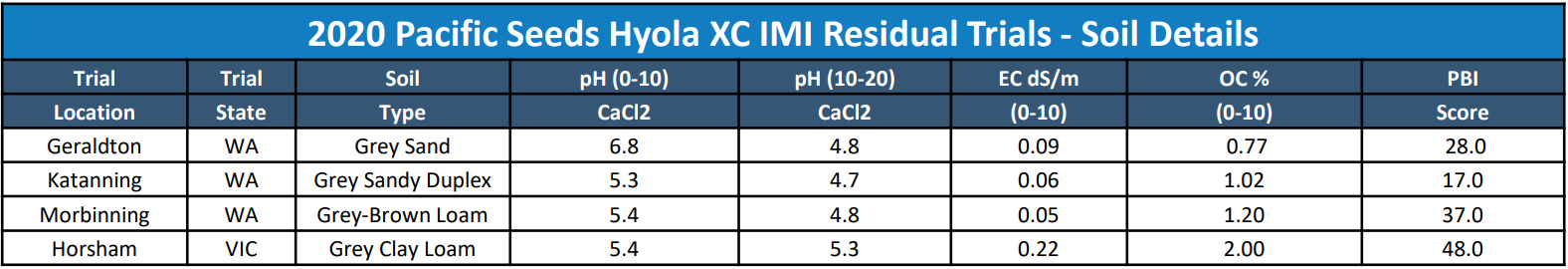

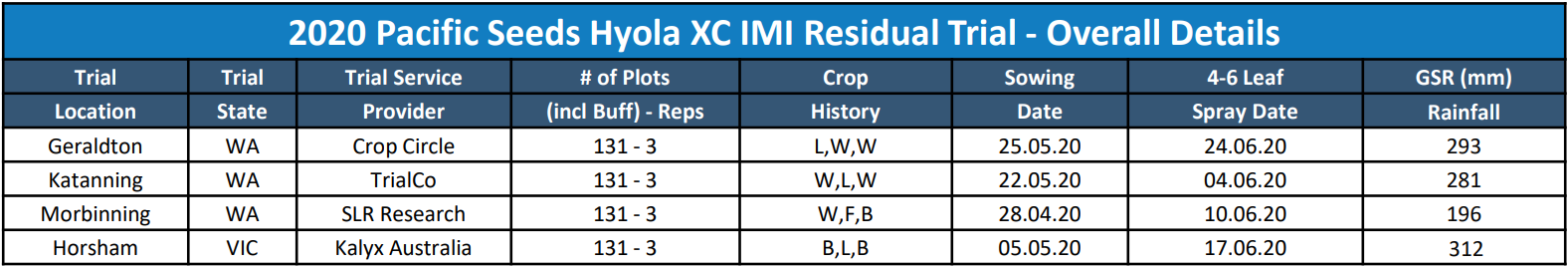

2020 Hyola® XC IMI Residue Trial – Agronomic Details

2020 Pacific Seeds Hydro XC M3 Regional Trial overview table with blue header and multiple rows of data
Blue title bar over a white table of Pacfic Sea tools sales details with rows and numeric columns.
Blue spreadsheet-like table titled “2020 Pupil/School” showing test scores and details columns.

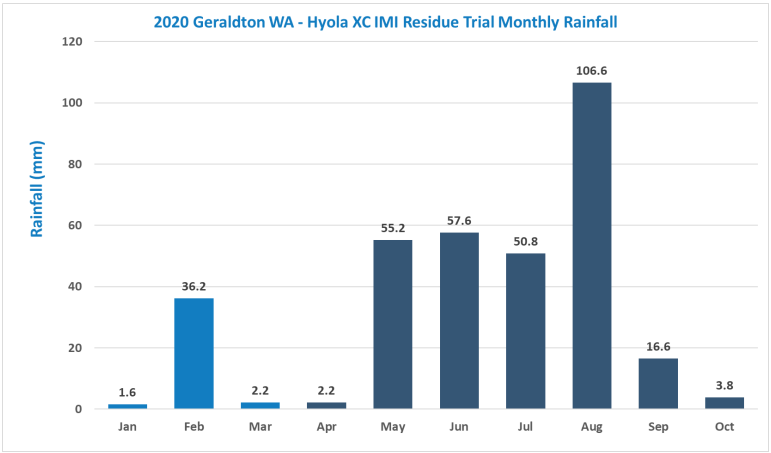

2020 Hyola® XC IMI Residue Trials - Rainfall Distribution Details

Bar chart of monthly rainfall in Geraidam WA-Hiybo XI, with a peak in August and low rainfall in Jan-Dec

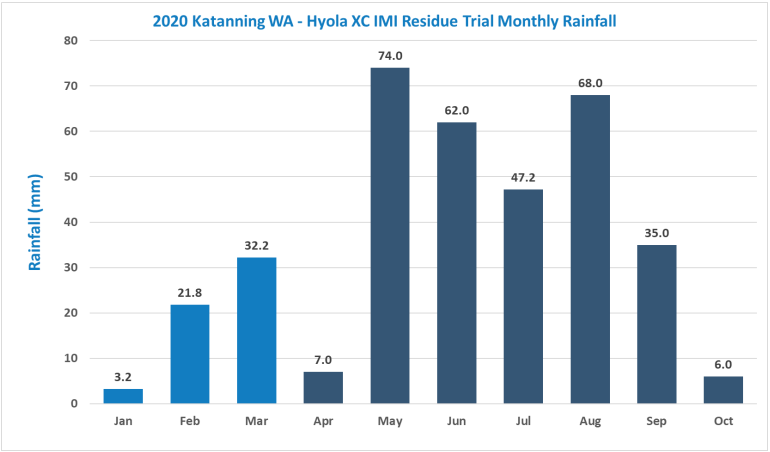

Bar chart of 2020 monthly rainfall in Katanning WA, with blue bars peaking in May and August.

2020 Hyola® XC IMI Residue Trials - Rainfall Distribution Details

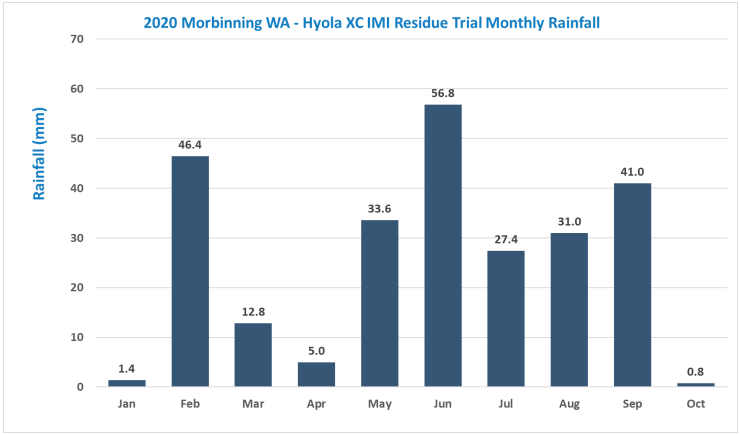

Bar chart of 2020 rainfall in Moribing WA, with monthly totals from Jan to Oct
Bar chart of 2023 monthly rainfall, with blue bars from Jan to Oct and peaks in May and Oct.

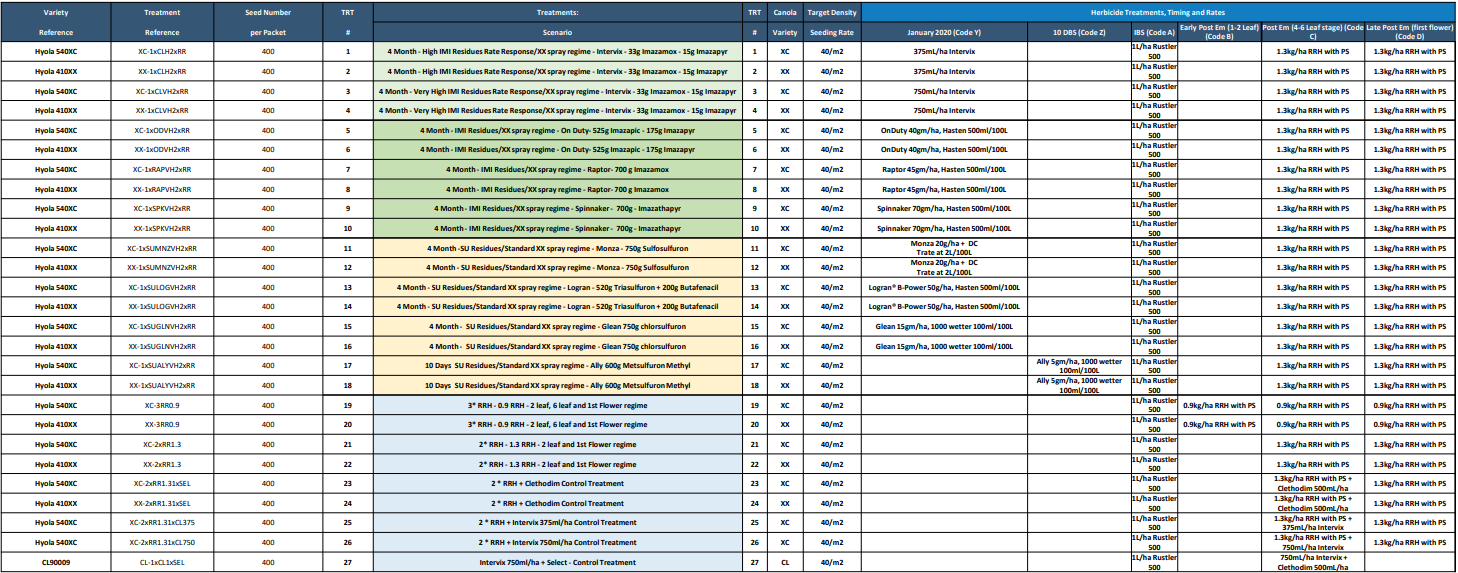

2020 Hyola® XC IMI Residue Trials – Herbicide Treatment Listing

Spreadsheet table with multiple columns and highlighted rows in green, yellow, and blue.

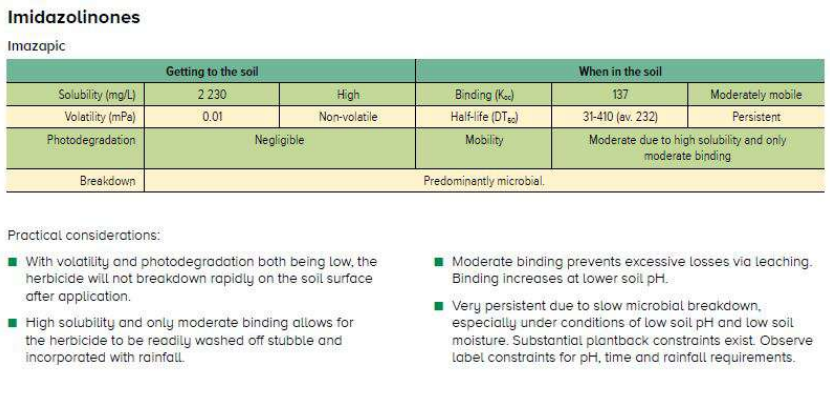

GROUP B – IMI IMIZAPIC CHEMISTRY GENERAL PROPERTIES – ALS INHIBITORS

Green infographic table comparing imidazolidinones, uses, side effects, and precautions with bullet points.
Small green plant with purple flowers growing in dry brown soil

Source: 2019 GRDC PUBLICATION - SOIL BEHAVIOUR OF PRE-EMERGENT HERBICIDES IN AUSTRALIAN FARMING SYSTEMS

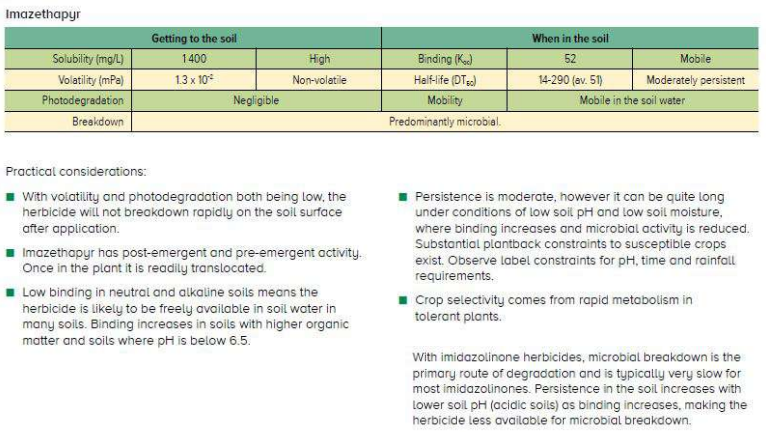

GROUP B – IMI IMIZAPIC CHEMISTRY GENERAL PROPERTIES – ALS INHIBITORS

Comparison table of symptoms, triggers, and impact across physical and mental health conditions
Young green plant with a few red-tinged leaves growing in dry soil and straw mulch

Source: 2019 GRDC PUBLICATION - SOIL BEHAVIOUR OF PRE-EMERGENT HERBICIDES IN AUSTRALIAN FARMING SYSTEMS

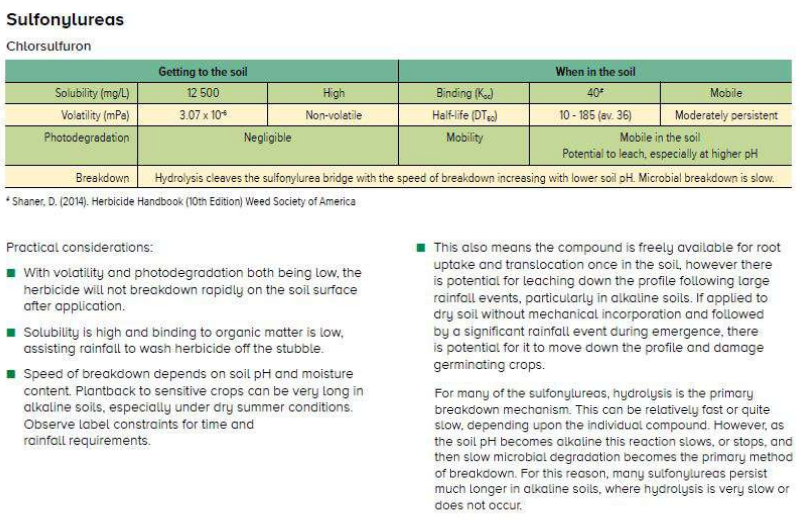

GROUP B - SU CHEMISTRY GENERAL PROPERTIES – ALS INHIBITORS

Soft tissue landmarks table with green headers and explanatory bullet points beneath
Small green seedlings sprouting in dry soil with scattered mulch and debris.

Source: 2019 GRDC PUBLICATION - SOIL BEHAVIOUR OF PRE-EMERGENT HERBICIDES IN AUSTRALIAN FARMING SYSTEMS

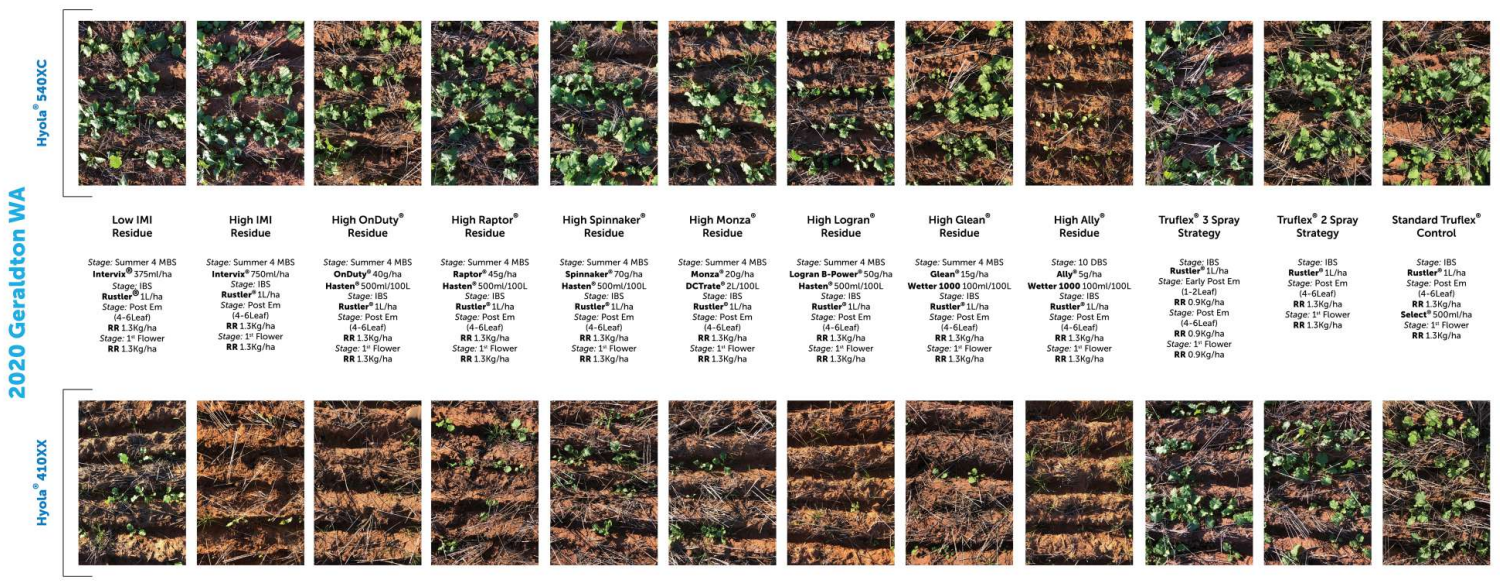

Chart comparing two rows of small plant photos with labels and measurements underneath
Grid of plant photos showing green foliage changes and darkened stages across multiple samples, with labels beneath each.
Grid of small plant-growth images comparing green and gray foliage across two rows

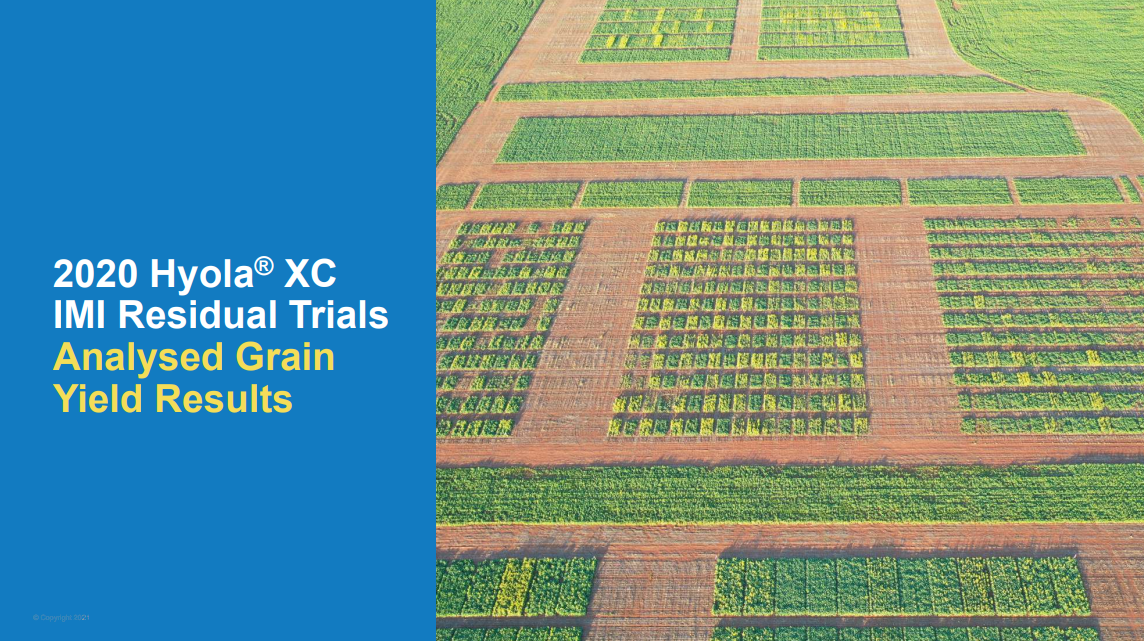

2020 Hyola XC IMI residual trials analyzed grain yield results title slide with aerial crop plots

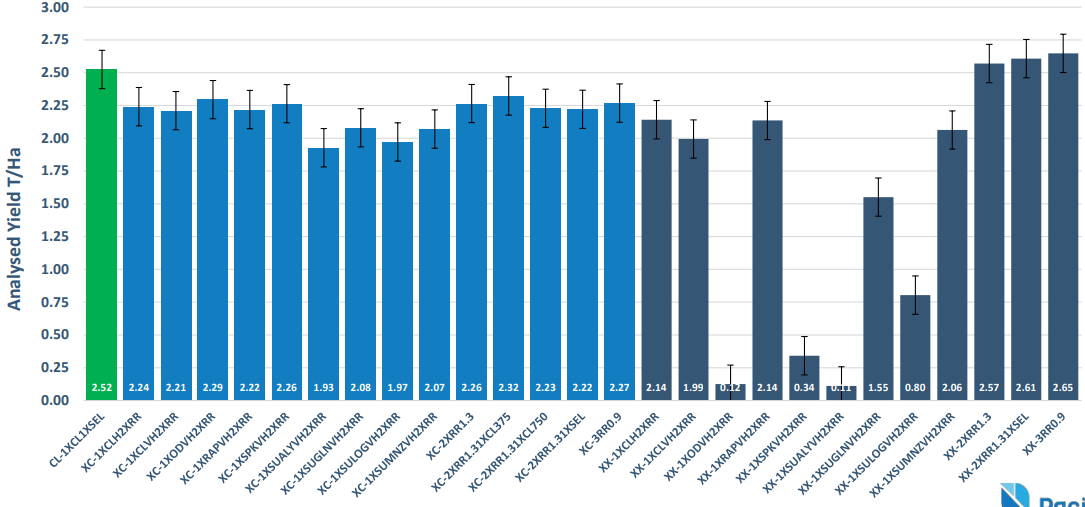

2020 Geraldton WA – Hyola® XC IMI Residual Trial - Analysed Grain Yield Results

2020 Geraldton WA Hyola XC vs XX IMI Residue Trial Yield Results (t/ha)
Blue and green bar chart showing monthly values with one highlighted low point and several smaller dips

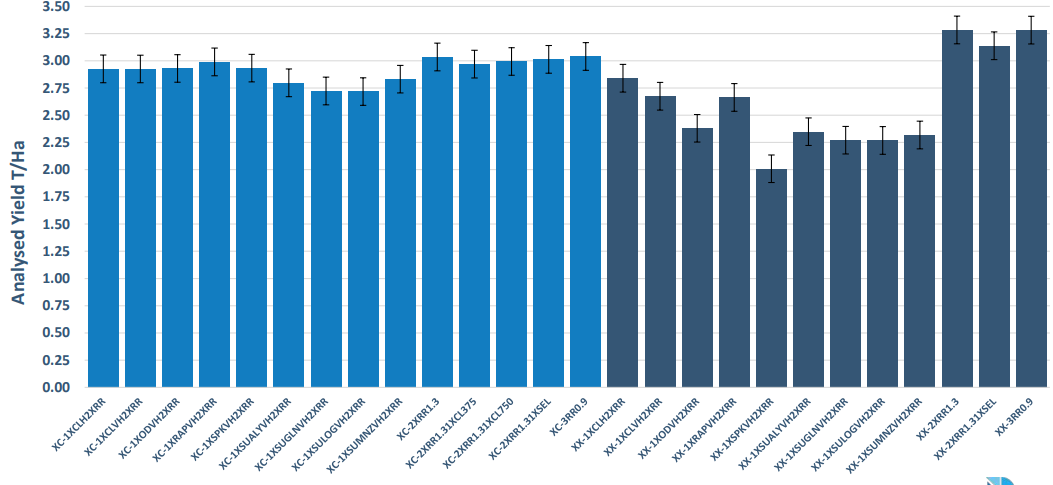

2020 Geraldton WA – Hyola® XC IMI Residual Trial - Analysed Grain Yield Results

2020 Katanning WA - Hyola XC vs XX IMI Residue Trial Yield Results (t/ha)
Bar chart with blue and dark gray bars showing values across many categories.

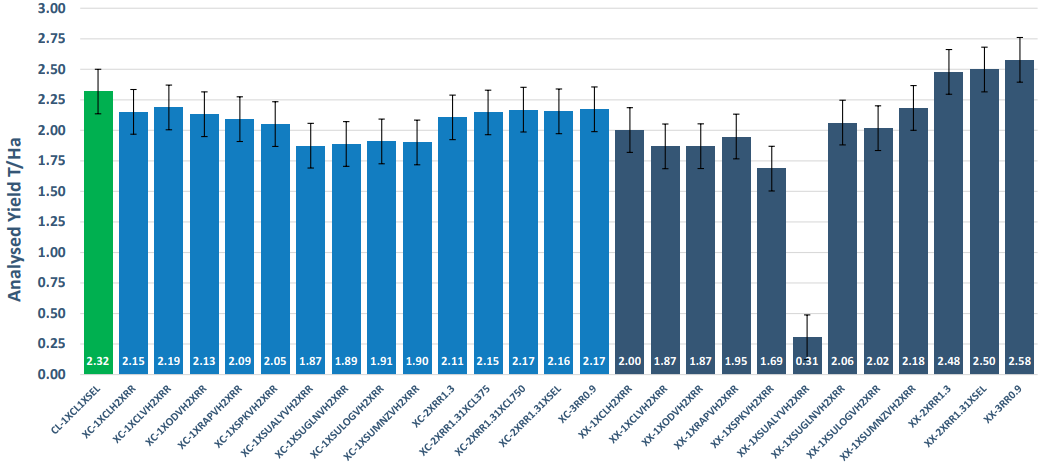

2020 Geraldton WA – Hyola® XC IMI Residual Trial - Analysed Grain Yield Results

2020 Morbinning WA - Hyola XC vs XX IMI Residue Trial Yield Results (t/ha)
Bar chart of monthly values with blue bars and one green bar, showing recent upward trend

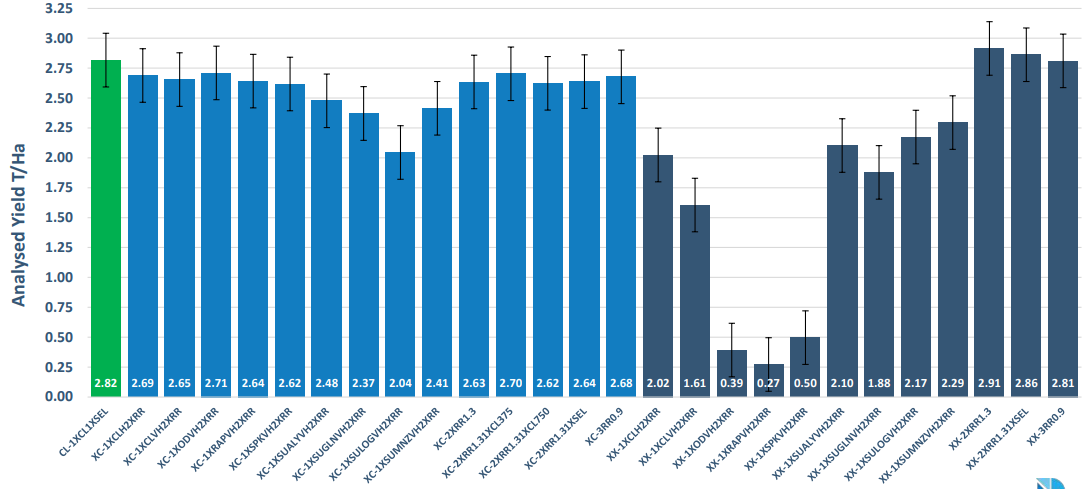

2020 Horsham Vic – Hyola® XC IMI Residual Trial - Analysed Grain Yield Results

2020 Horsham Vic - Hyola XC vs XX IMI Residue Trial Yield Results (t/ha)
Bar chart with many blue bars, one green bar, showing values rise and fall across categories.

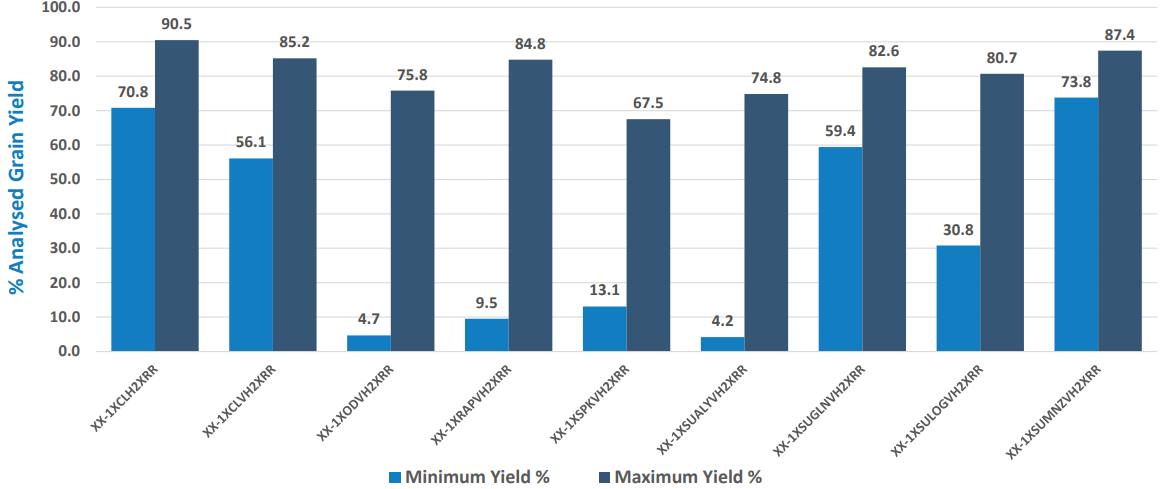

2020 Hyola® XC IMI & SU Residue Trials – Hyola XX % Range of Grain Yield vs 100% XX Control

2020 Hyola XX Technology IMI & SU Treatment - % Grain Yield Comparisons Range vs 100% XX Control across 4 Trial locations
Blue and gray bar chart comparing values across several categories with percentage labels above each bar

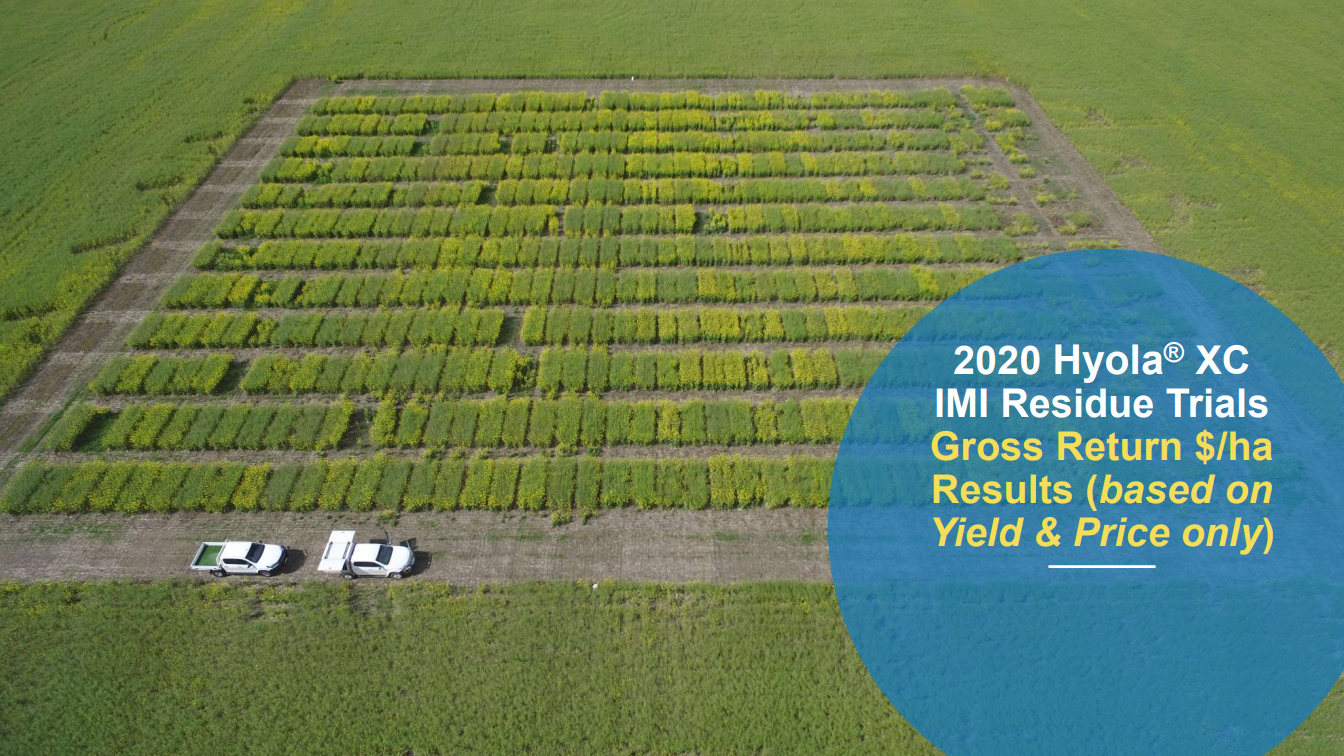

Drone view of a rice field trial plot with rows of green crops and text overlay about yield and price

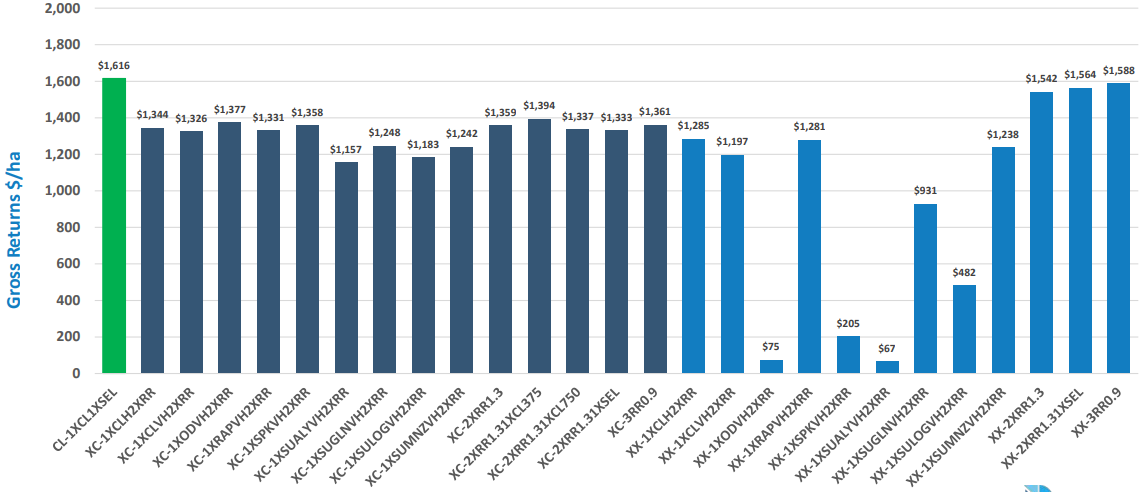

2020 Geraldton WA – Hyola® XC IMI Residual Trial Gross Returns $/ha

2020 Geraldton WA - Hyola XC IMI Residue Trial Gross Returns $/ha
Bar chart with blue bars and one green bar, showing values across many labeled categories.

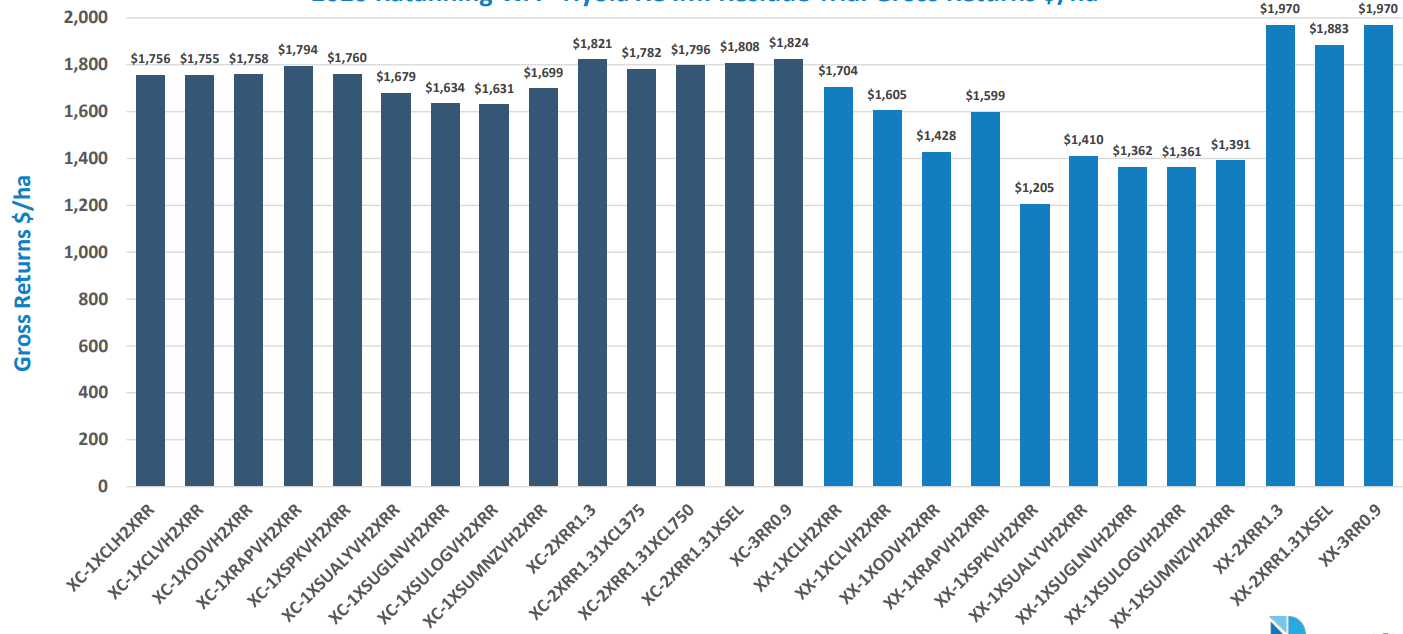

2020 Katanning WA – Hyola® XC IMI Residual Trial Gross Returns $/ha

2020 Katanning WA - Hyola XC IMI Residue Trial Gross Returns $/ha
Blue bar chart showing monthly values, mostly stable then declining and slightly recovering at the end.

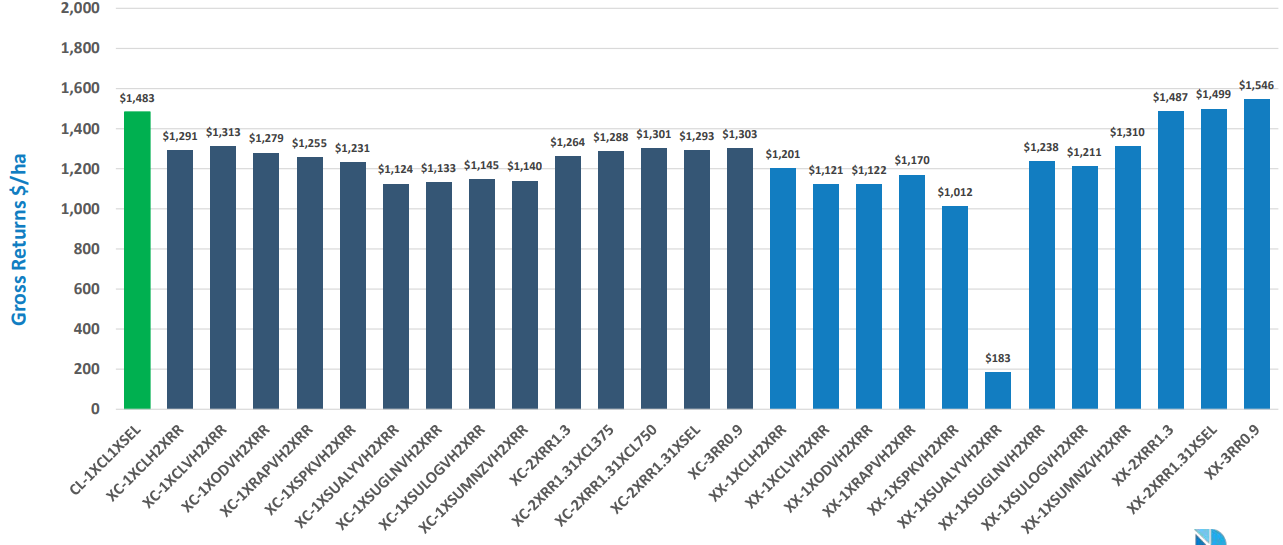

2020 Morbinning WA – Hyola® XC IMI Residual Trial Gross Returns $/ha

2020 Morbinning WA - Hyola XC IMI Residue Trial Gross Returns $/ha
Blue bar chart with one green bar, showing labeled values across many categories and a sharp dip near the end

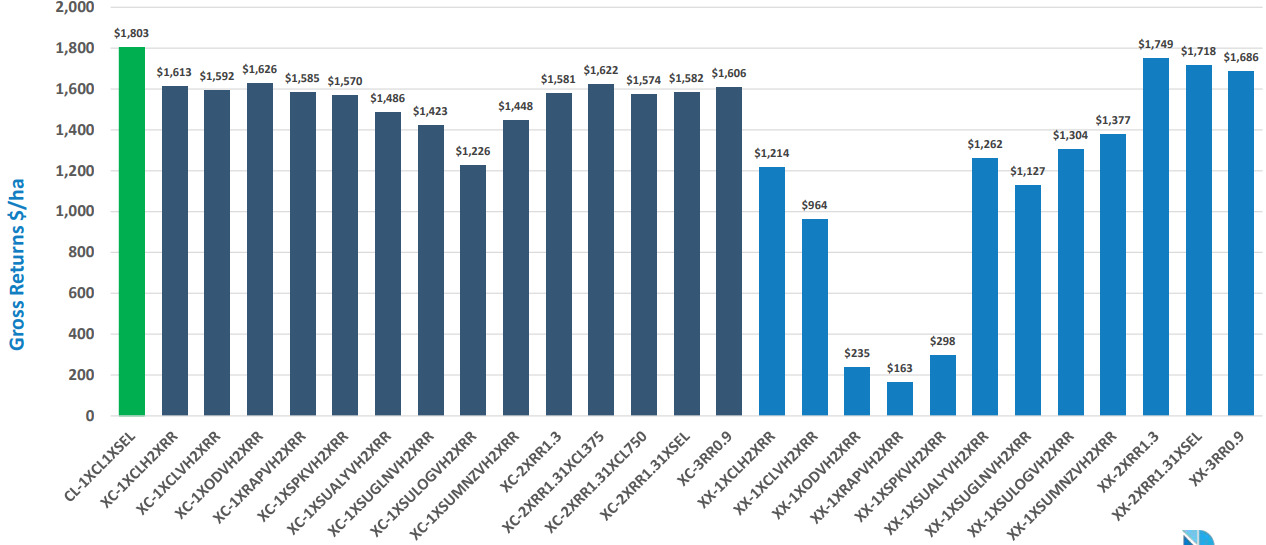

2020 Horsham Vic – Hyola® XC IMI Residual Trial Gross Returns $/ha

2020 Horsham Vic - Hyola XC IMI Residue Trial Gross Returns $/ha
Bar chart with blue and green bars showing values by month, dipping midyear and rising again at year end
2020 Hyola Xc IMI Residue Trials overall results title beside a green crop field

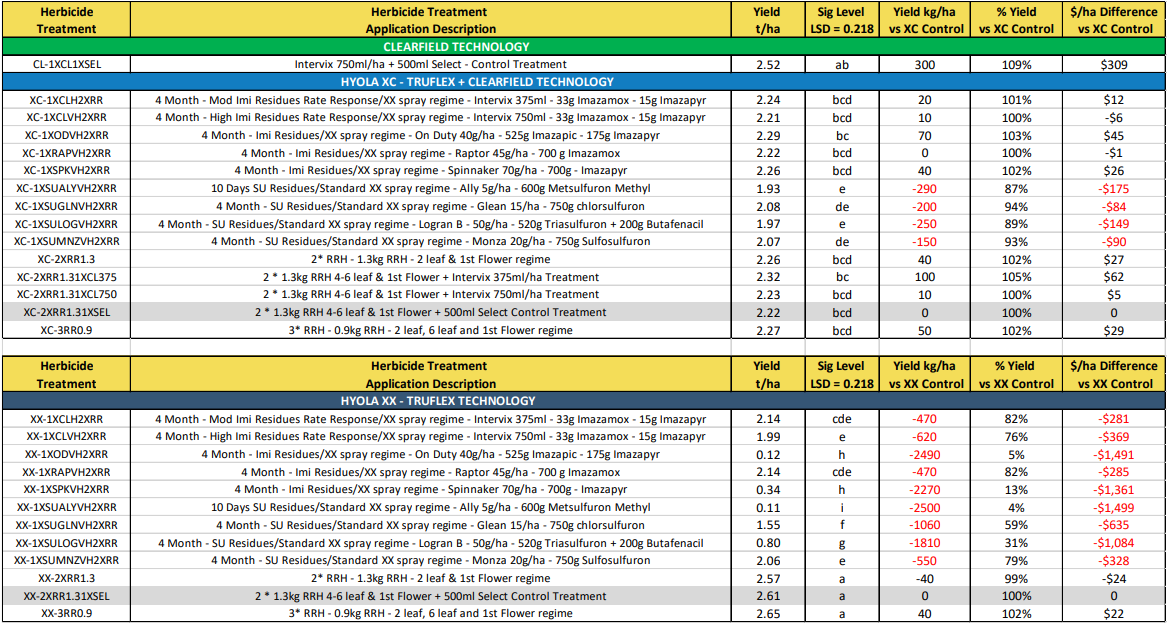

2020 Geraldton WA – Hyola® XC IMI Residual Trial Overall Results Table

Blurred spreadsheet with rows of text and numbers, highlighted in yellow and teal, arranged in two sections.

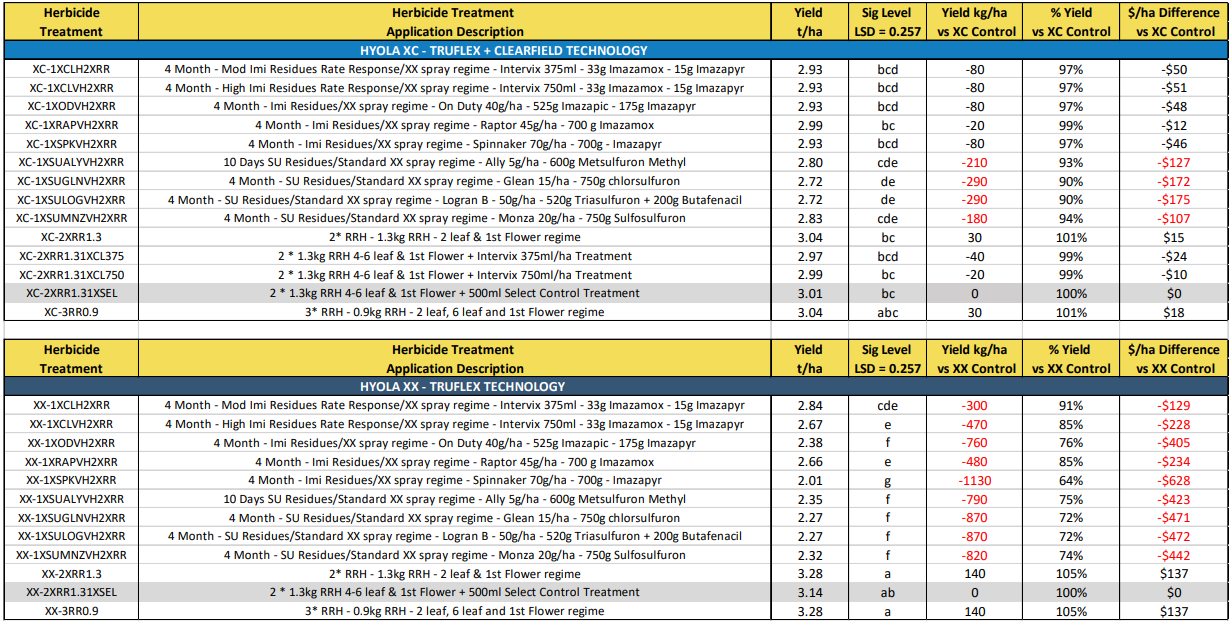

2020 Katanning WA – Hyola® XC IMI Residual Trial Overall Results Table

Spreadsheet with rows of text and numbers, showing two yellow-headed table sections with some red values highlighted

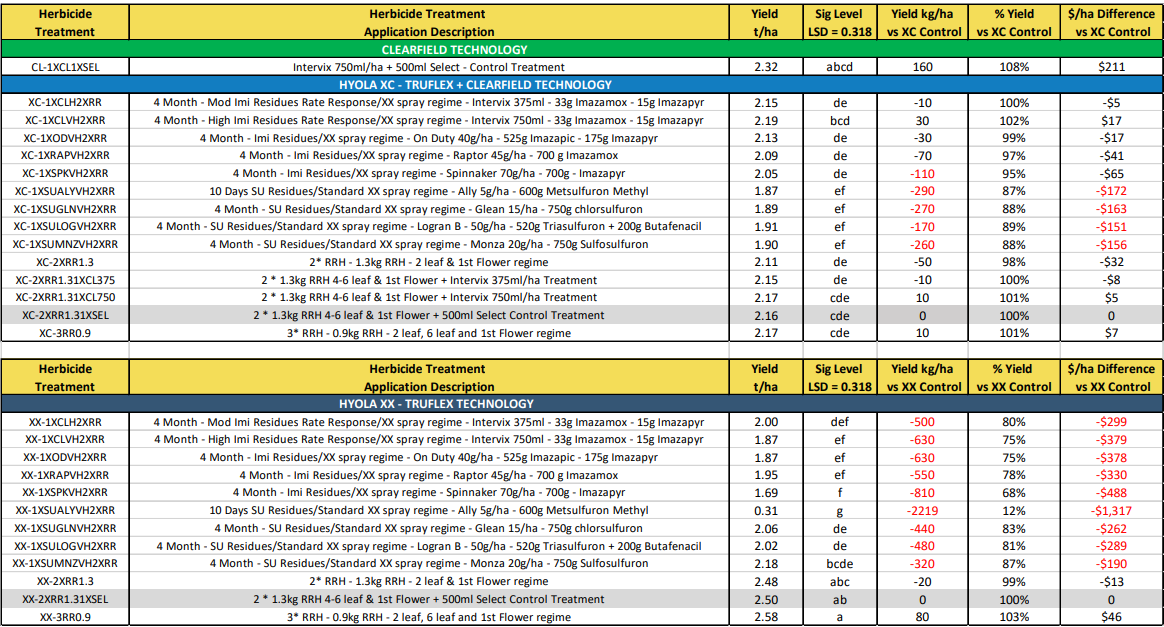

2020 Morbinning WA – Hyola® XC IMI Residual Trial Overall Results Table

Spreadsheet with two yellow-header tables listing rows of text and numeric columns, with some red values highlighted

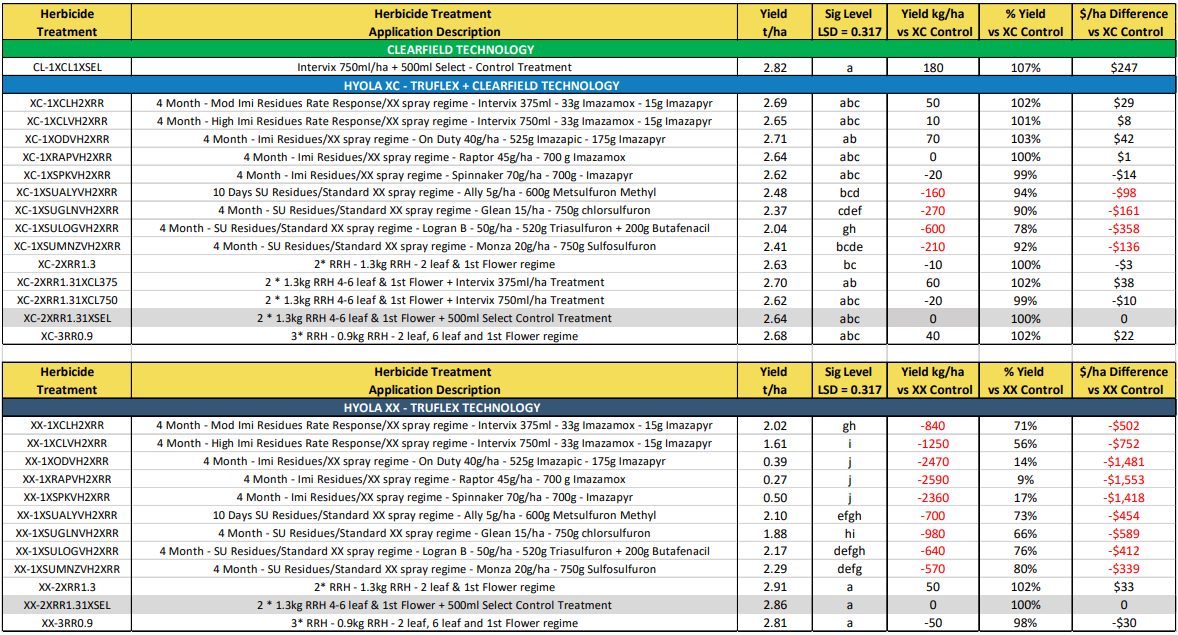

2020 Horsham Vic – Hyola® XC IMI Residual Trial Overall Results Table

Blurry spreadsheet table with yellow and blue section headers, rows of text, and red/green numeric columns

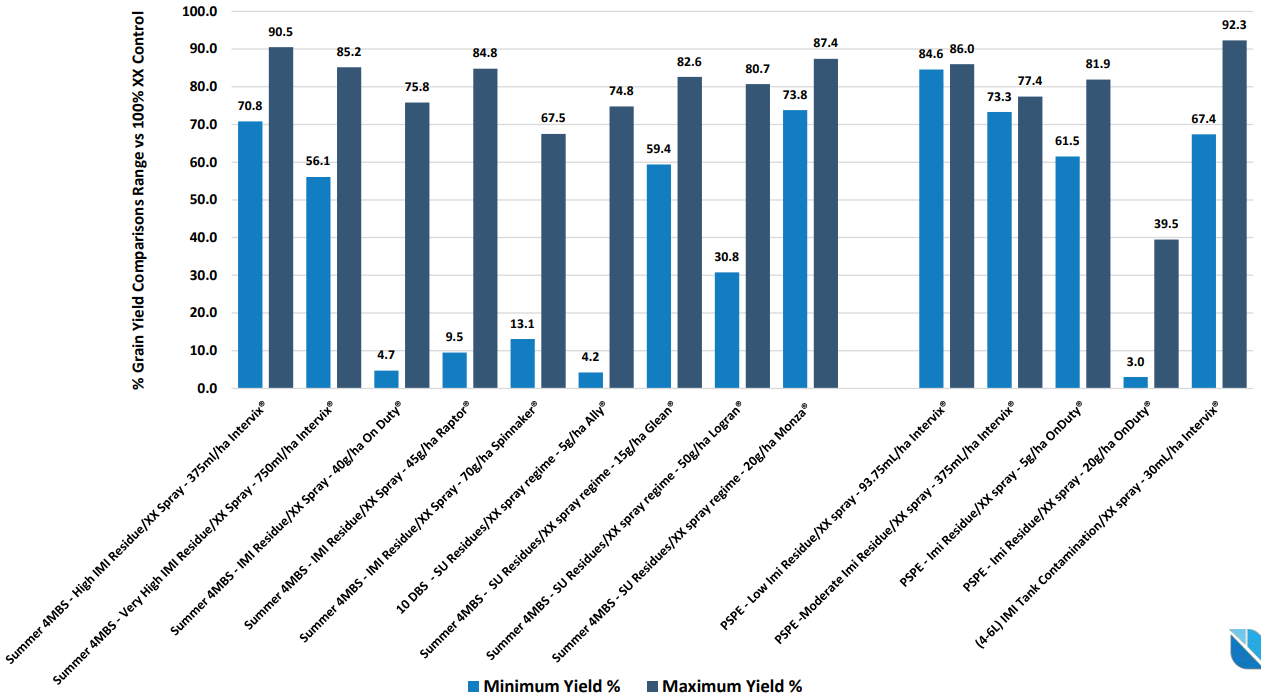

2020 Summer Applications (4 Trials) vs 2019 PSPE Applications (4 Trials) Hyola XX Technology IMI & SU Treatment Comparisons

Blue and gray bar chart comparing values across multiple categories with angled labels.

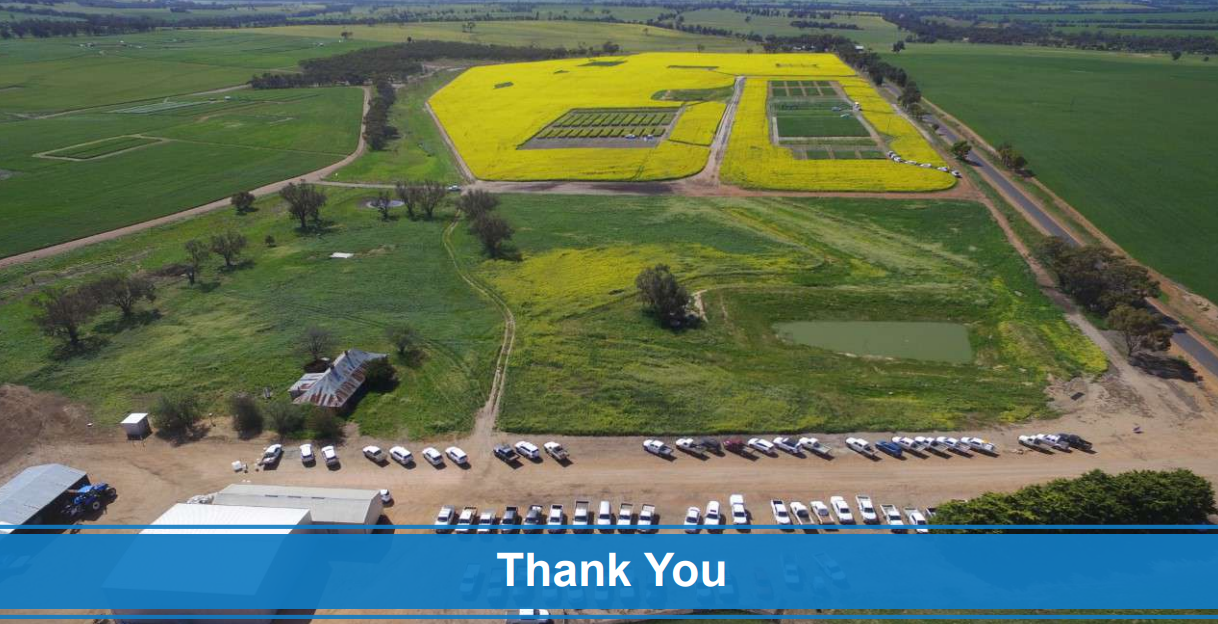

Aerial view of a green field with bright yellow flower patterns and a blue “Thank You” banner at the bottom.
