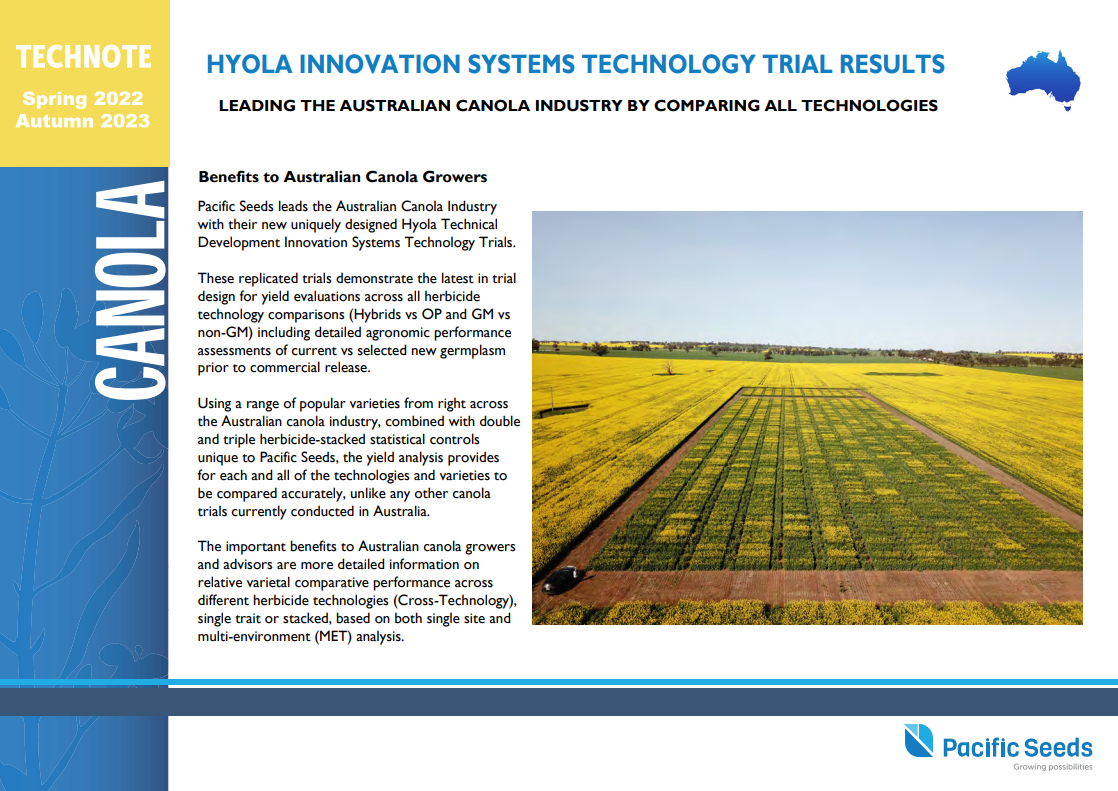

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

LEADING THE AUSTRALIAN CANOLA INDUSTRY BY COMPARING ALL TECHNOLOGIES

Benefits to Australian Canola Growers

Pacific Seeds leads the Australian Canola Industry with their new uniquely designed Hyola Technical Development Innovation Systems Technology Trials.


 These replicated trials demonstrate the latest in trial design for yield evaluations across all herbicide technology comparisons (Hybrids vs OP and GM vs non-GM) including detailed agronomic performance assessments of current vs selected new germplasm prior to commercial release.


 Using a range of popular varieties from right across the Australian canola industry, combined with double and triple herbicide-stacked statistical controls unique to Pacific Seeds, the yield analysis provides for each and all of the technologies and varieties to be compared accurately, unlike any other canola trials currently conducted in Australia.


 The important benefits to Australian canola growers and advisors are more detailed information on relative varietal comparative performance across different herbicide technologies (Cross-Technology), single trait or stacked, based on both single site and multi-environment (MET) analysis.

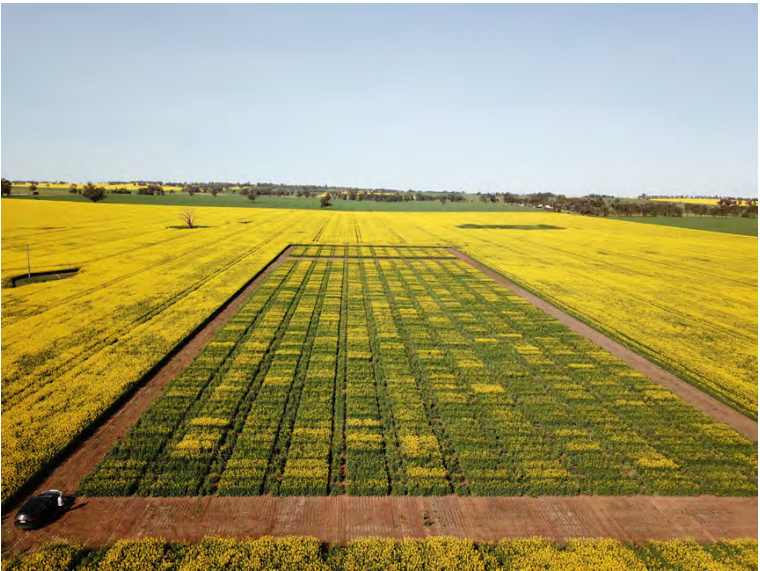

Aerial view of long green crop rows between bright yellow fields under a clear sky

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

LEADING THE AUSTRALIAN CANOLA INDUSTRY BY COMPARING ALL TECHNOLOGIES

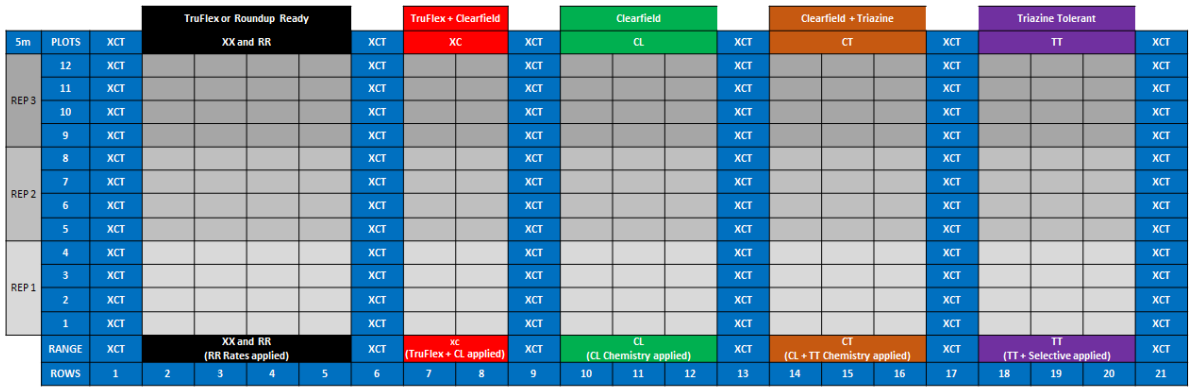

Color-coded weekly schedule table with gray, red, green, orange, and purple columns and time slots.

Locations, Trial Design, Assessments & Treatments

Trial locations in 2021 included; Tarlee SA, Yeelanna SA, Nabawa WA, Cunderdin WA, Mokine WA, Kojonup WA, Gibson WA, Lake Bolac Vic, Yarrawonga Vic, Wallendbeen NSW and Cowra NSW.


 Each 3 replicate RCB separate herbicide technology section was sown to target 25-35 plants per m2 established and has the appropriate registered chemistry applied at standard timings/rates, with stacked variety blocks also having both chemistries applied. Field assessments for all varieties include Plant establishment in m2, plant vigour scores, flowering maturity in days to 50% flower, windrowing maturity (3 to 6 scale), plant height (cm), grain yield (kg/ha) and grain oil%. Each site is managed to the highest professional standards in the Industry and high integrity around agronomy and trial management where standards are designed specific to the trial environments.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

CROSS-TECHNLOGY MET ANALYSIS BENEFITS FOR GROWERS OVER SINGLE SITE ANALYSIS

MET Analysis Benefits over Single Site Analysis

Multi Environment Trial (MET) analysis is the currently the most powerful tool to compare the adaptability of varieties across a range of environments and seasons using all the available data.


 MET analysis results provide increased reliability and accuracy from a bigger dataset than a Single Site Analysis. The 2021 MET analysis was conducted on a one-year dataset that includes 11 trials from a range of environmental conditions. In 2022, the expansion of the Hyola Innovation Systems Technology trials to 20 environmental sites will provide for a 2-year combined MET analysis with results data from 2021 and 2022 replicated trial sites.


This enables advisors and growers to select consistently high performing varieties now across all major herbicide technologies including stacked hybrids.


 Use of Single site location results can be inaccurate and quite misleading for longer term varietal adaptability decisions. Single sites only show "One Trial, One season, One location, Once off" result and it is imperative that when used as part of the decision making process, that the individual site statistics (CV, LSD values) are reviewed accurately when interpreting the data for performance relating to specific varieties

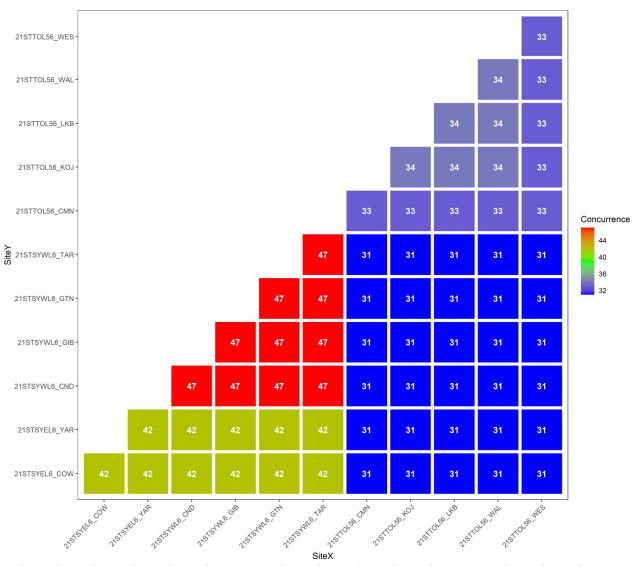

Colored triangular heatmap grid with numbered cells from green to red and blue, plus a vertical color scale

Pacific Seeds 2021 Hyola® Innovation Systems Technology Trials across 11 environments showed high levels of varietal concurrence.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 MET ANALYSIS GRAIN YIELD COMPARISON OUTCOMES FOR AUSTRALIAN GROWERS

MET Analysis Variety Results Outcomes

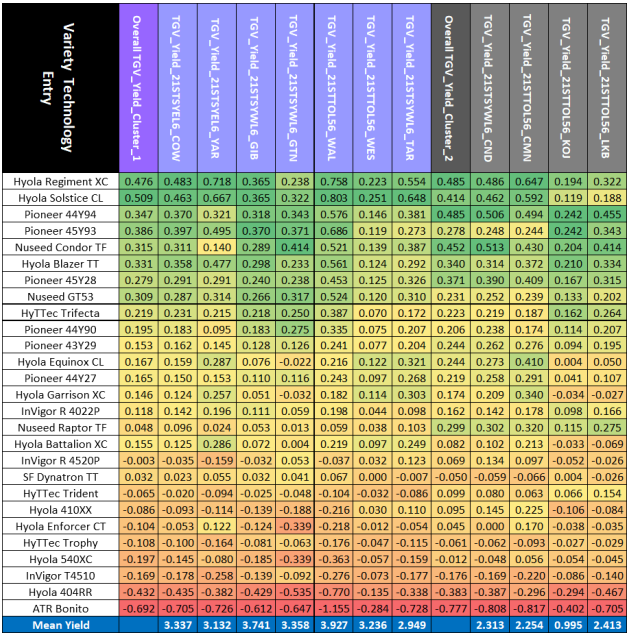

11 Cross-Technology trial sites with data shown is grain yield BLUP (t/ha) above or below the mean yield of the trial.


 Green colours are strongest positive results above mean, with the Red colour being below the mean. Any variety that shows green across more environments is more adaptable and higher yielding.


 Clusters 1 & 2 are MEGA environments determined by the genetic correlation between sites as determined by the MET analysis.


 Single sites only demonstrate the relative ranking of varieties for one trial, DO NOT focus on one Single environment result.


 The 2021 higher rainfall season strongly influenced varietal performance ranking comparisons, and best to always compare across multiple seasons and environments.


 These yield results clearly demonstrate that genetically higher yielding TT hybrids can yield as well as CL, TruFlex®, XC and RR hybrids.

Color-coded player performance table with green-to-red heatmap cells and role labels on the left.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 MET ANALYSIS GRAIN YIELD COMPARISON OUTCOMES FOR AUSTRALIAN GROWERS

MET Analysis - PV Plus Methodology Outcomes

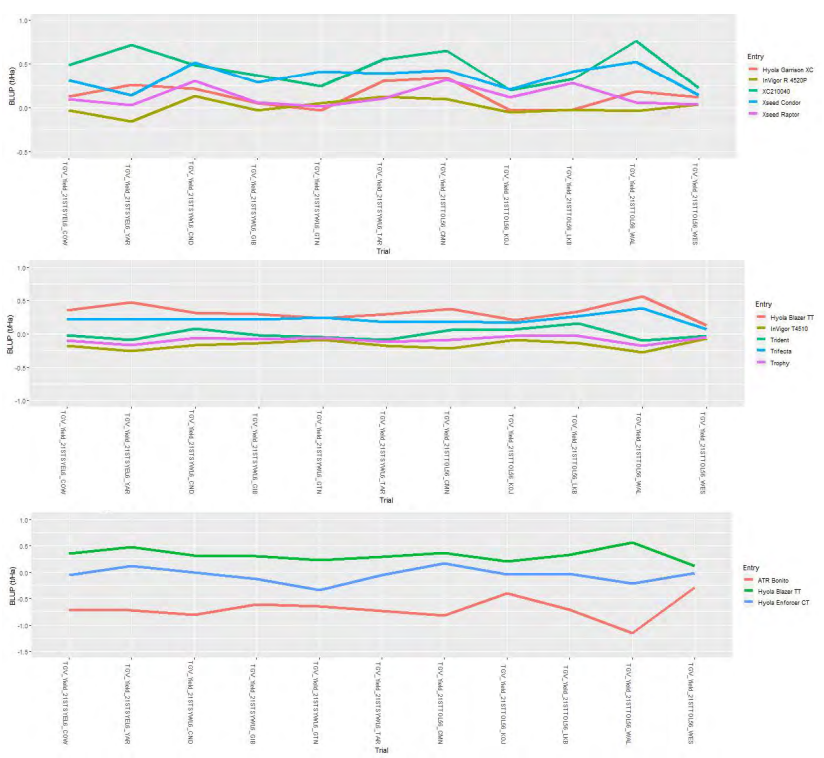

Top graphic shows higher rainfall season favoured the mid season types, with new XC stacked genetics showing comparative or better performance to Single trait TruFlex® technology.


 Middle graphic shows both Hyola Blazer TT and HyTTec Trifecta TT showing the higher yields across environments in a higher rainfall season when compared to other TT hybrids.


 Bottom graphic shows both Hyola Blazer TT and Hyola Enforcer CT showing the higher yields across environments in a higher rainfall season when compared to industry standard OP TT variety, ATR Bonito.

Three stacked multi-line charts with colored trend lines across categories and dates.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

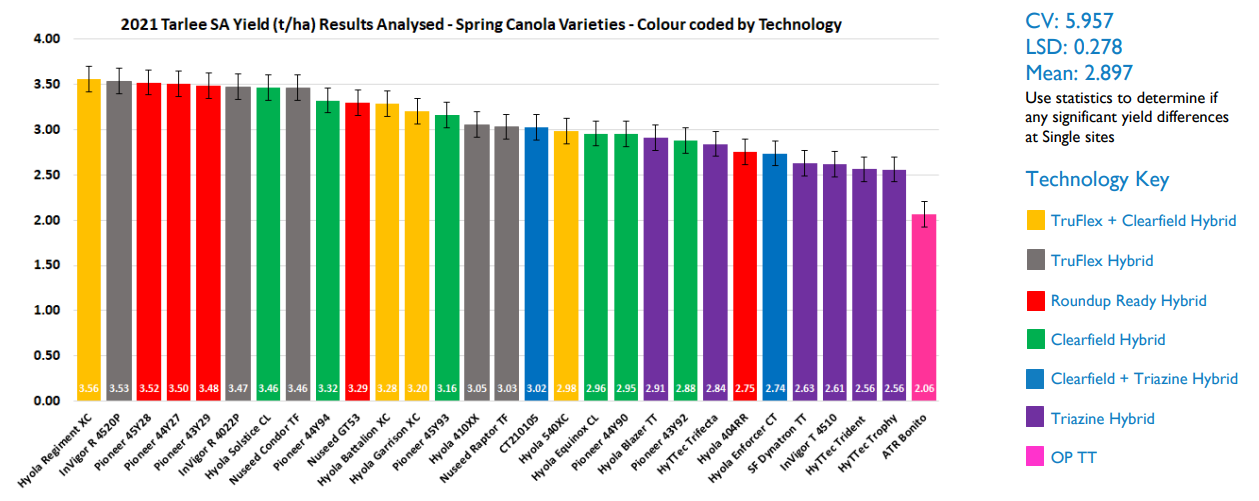

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

Colorful descending bar chart with a legend on the right and rotated x-axis labels.
Aerial view of large yellow crop fields with long rectangular solar panel arrays
Yellow wildflowers blooming in a field under a cloudy sky, with trees in the distance

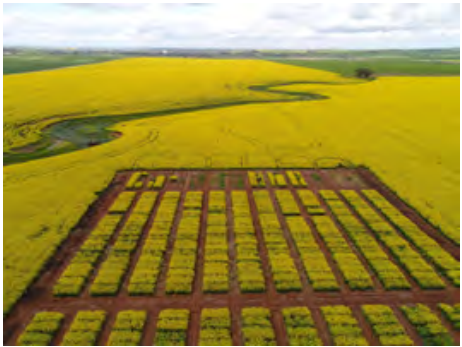

Aerial view of a yellow flowering field with a rectangular brown patterned plot in the foreground
Rows of green and yellow crops in a field under a blue sky, with a few trees in the distance

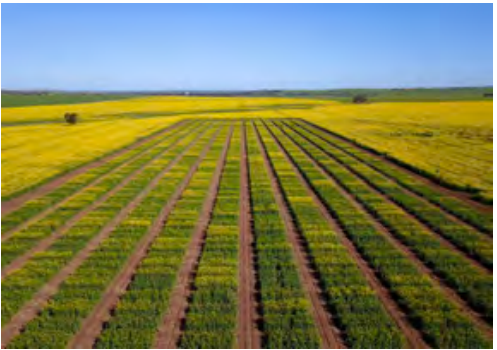

Rows of green crops stretching across a yellow field under a clear blue sky

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

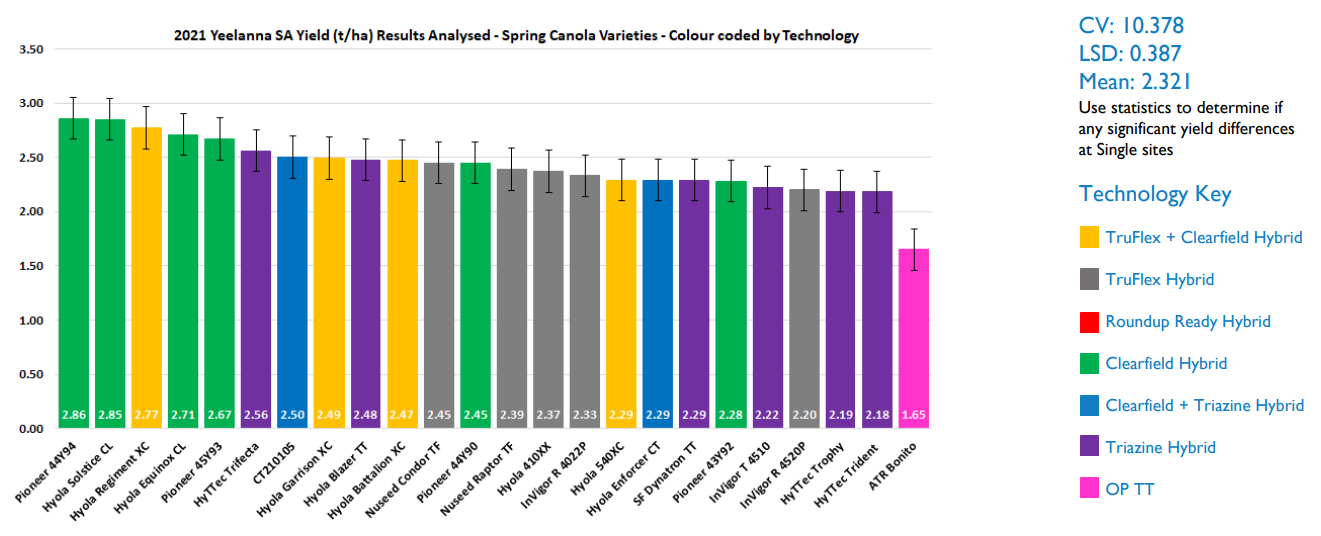

Bar chart of 15 categories with descending colored bars and a legend on the right.
Wide green crop field under a cloudy sky with muddy furrows in the foreground

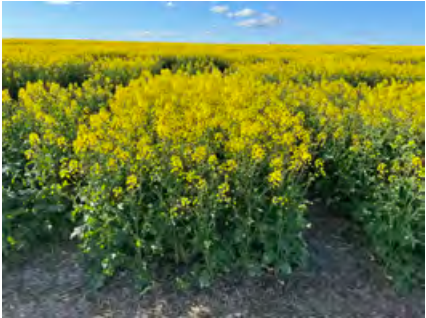

Yellow flowering field under a blue sky, with rows of plants stretching into the distance
Rows of yellow flowers in a field under a clear blue sky

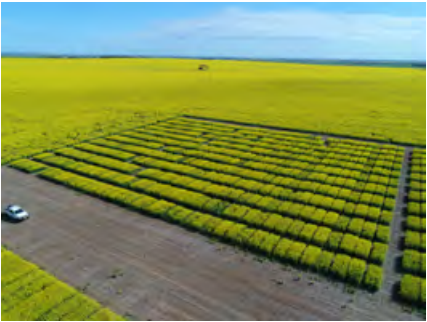

Aerial view of a yellow-green crop field with a dirt road and a small vehicle on the left.
Man smiling beside blue EQUINOX CL sign in front of yellow flowering bushes

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

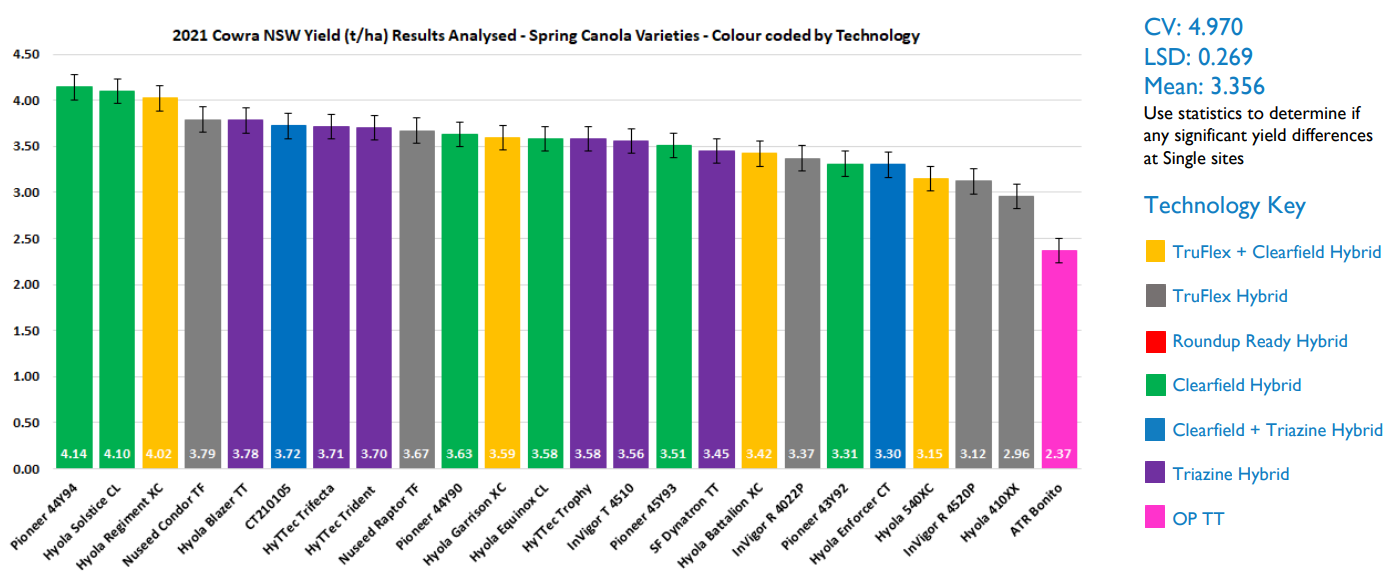

Bar chart of multiple colored bars showing ranked values, with a legend on the right.
Rows of green crops growing in a field with dirt paths between them

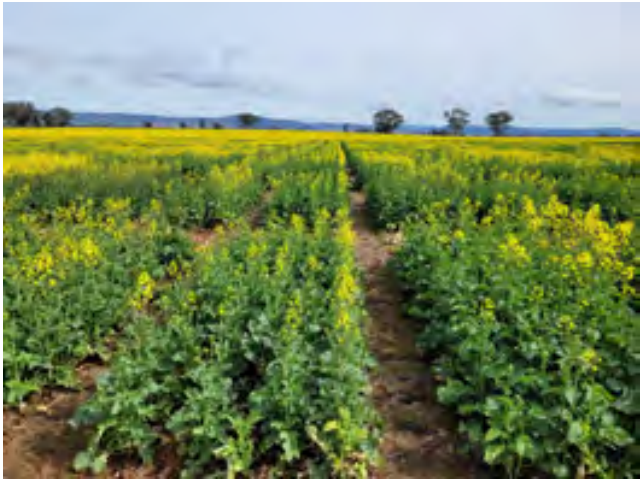

Rows of green and yellow crops in a field under a cloudy sky

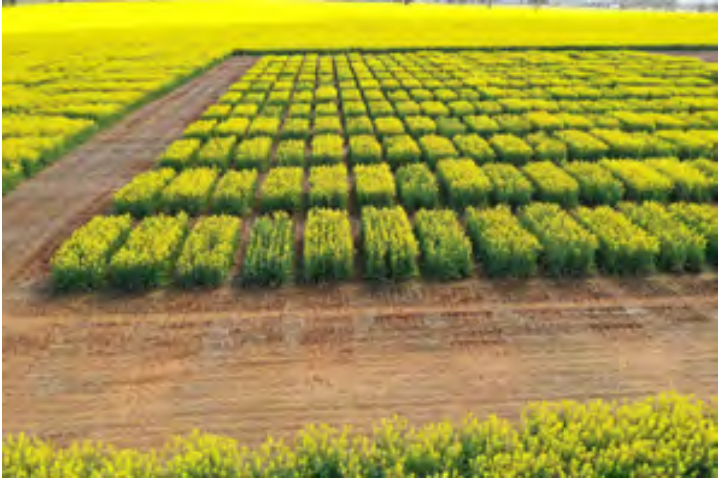

Rows of yellow flowering crops in a farm field, divided by dirt paths
Lush green field with low shrubs under a blue sky and distant trees

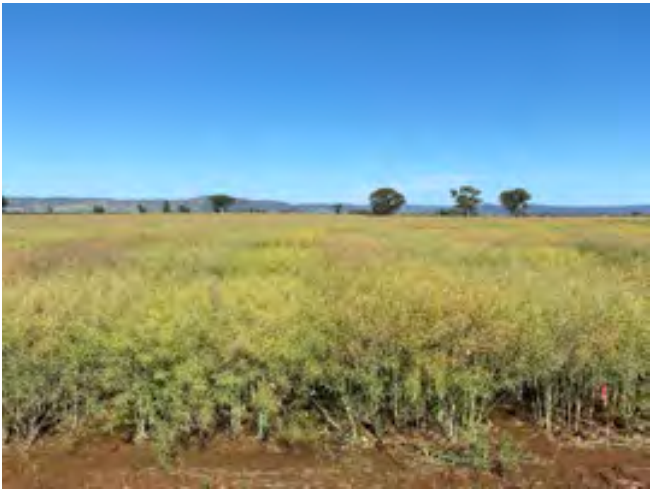

Open grassy field under a clear blue sky with distant trees on the horizon

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

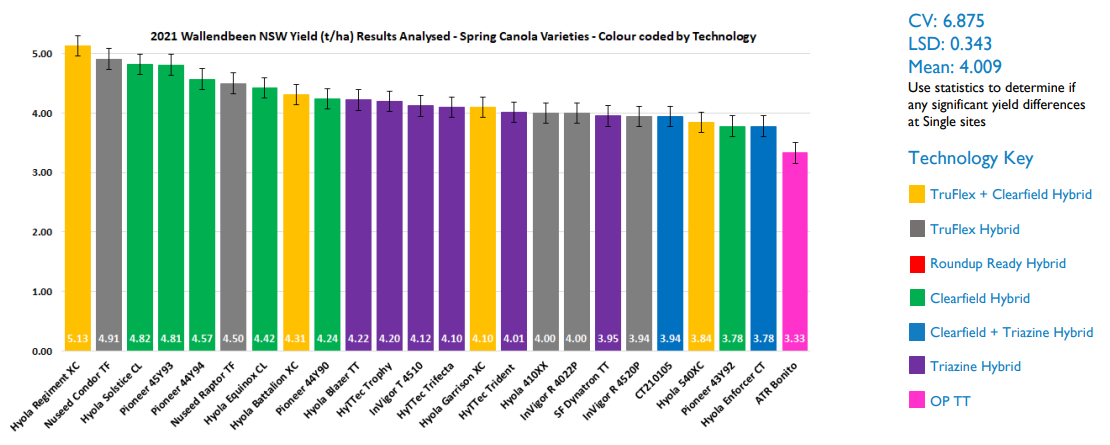

Color-coded bar chart comparing many categories, with a legend on the right and tilted labels along the bottom
Aerial view of a farm field with long parallel crop rows and green-yellow vegetation.
Rows of yellow-green crops in a field with dirt paths under a bright sky

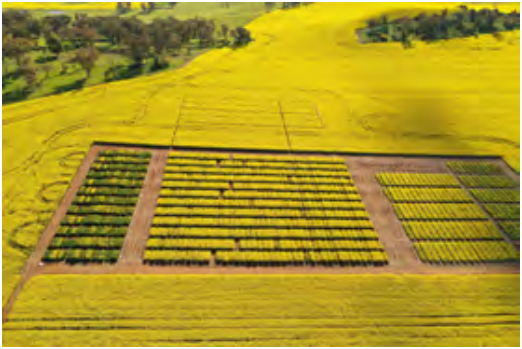

Aerial view of yellow flower fields arranged in rows with dirt paths between plots

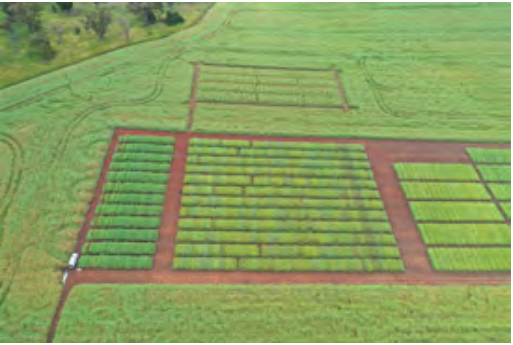

Aerial view of colorful rectangular crop plots in a green field with red dirt paths

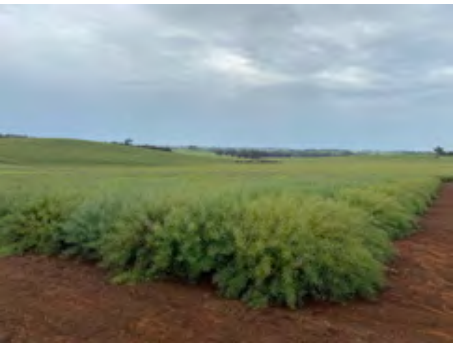

Green crop field with dense shrubs under a cloudy sky, bordered by reddish soil rows

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

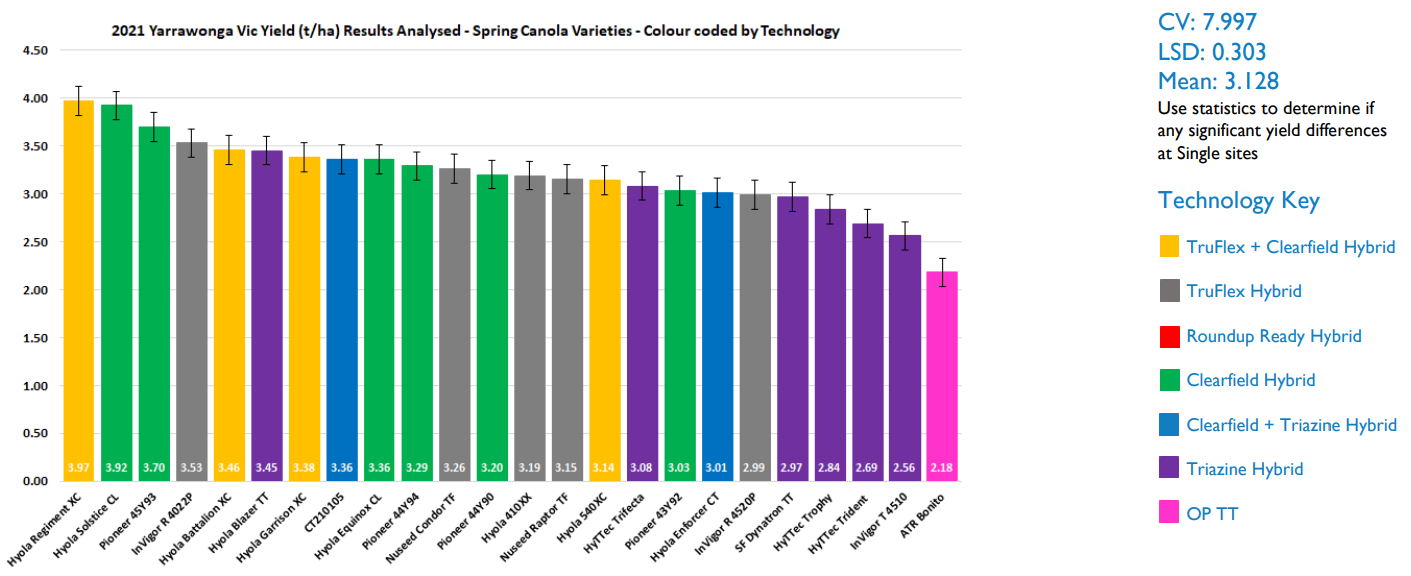

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

Colorful descending bar chart with a legend on the right and labels along the x-axis.

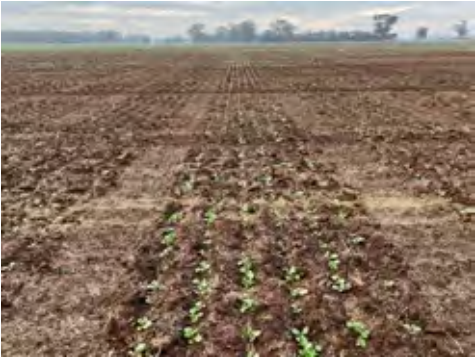

Young green crops in rows across a dry, brown field under a hazy sky

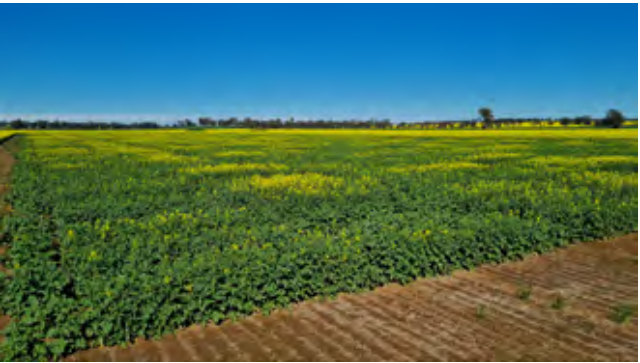

Yellow-flowering crop field under a clear blue sky, with a dirt path in the foreground
Wide green crop field under a cloudy gray sky with a distant tree line

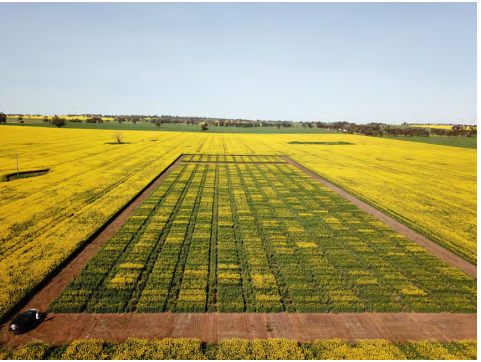

Aerial view of vast yellow flower fields with a central green crop strip and dirt roads under a clear sky
Wide green field under a clear blue sky with a distant tree line.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

Bar chart of COVID-19 variant growth trends with colored bars and a variant legend on the right
Freshly planted field under a cloudy blue sky with a yellow marker stake in the foreground

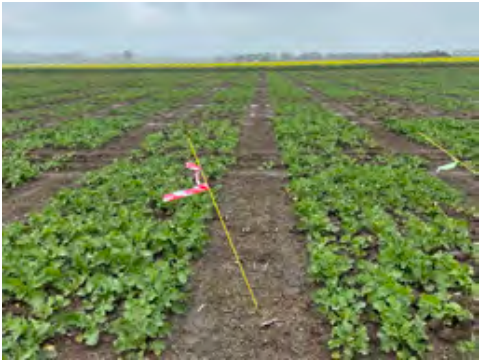

Marked crop rows in a muddy field with a pink survey flag under an overcast sky
Aerial view of a long dark field strip cutting through bright yellow farmland under a hazy sky

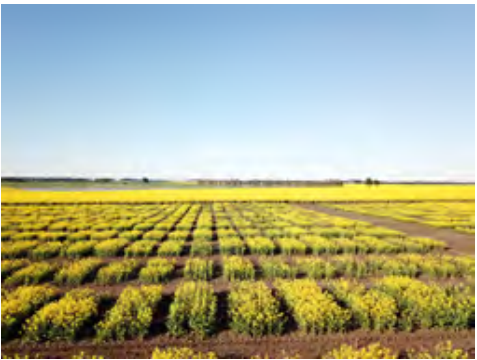

Rows of yellow flowering crops in a flat field under a clear blue sky
Yellow flowering field under a cloudy blue sky

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

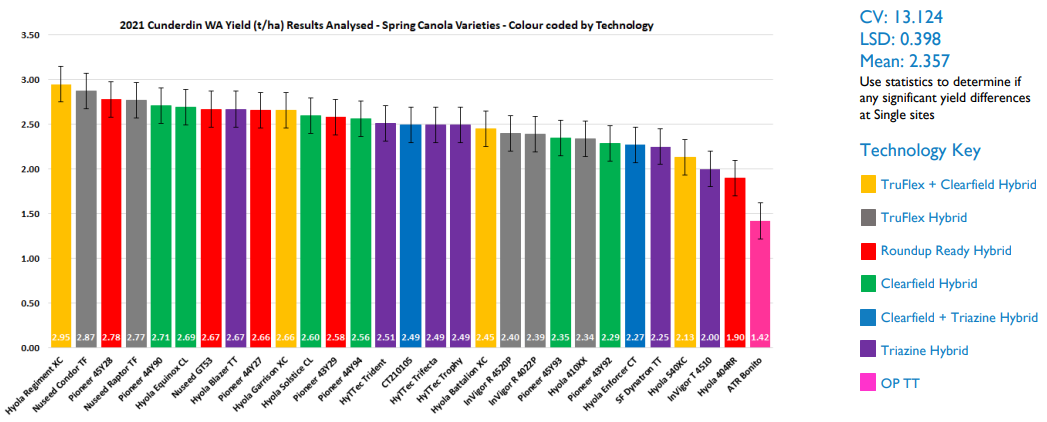

Colorful bar chart comparing many labeled categories, with a legend on the right and descending values across bars

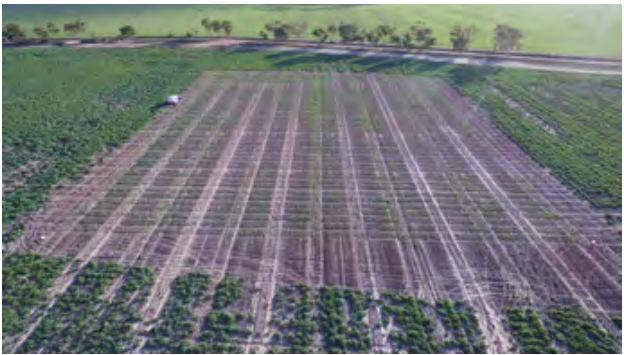

Aerial view of a green field with long, parallel rows of crops or soil strips.

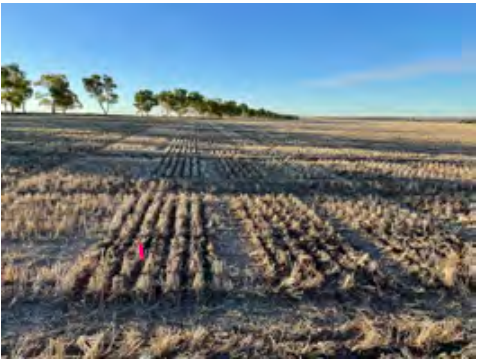

Frosted farm field with rows of crops and a line of trees under a clear blue sky

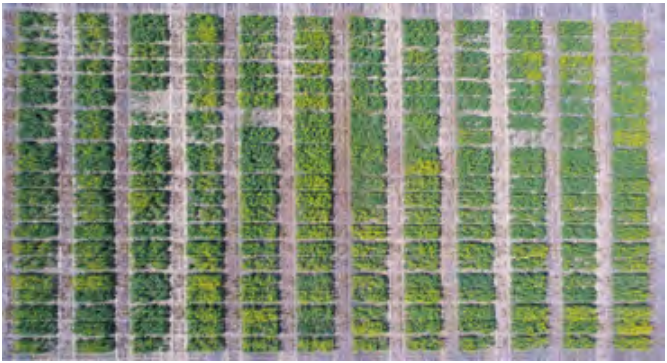

Aerial view of neat green crop rows separated by light dirt paths in a field

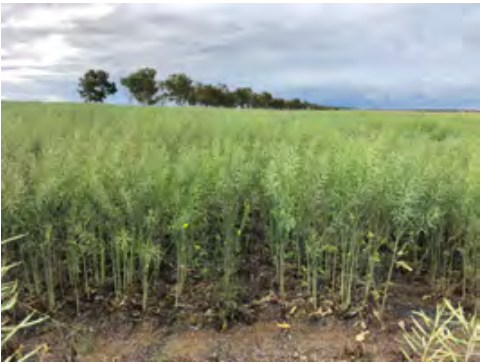

Green crop field under a cloudy sky with trees in the distance

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

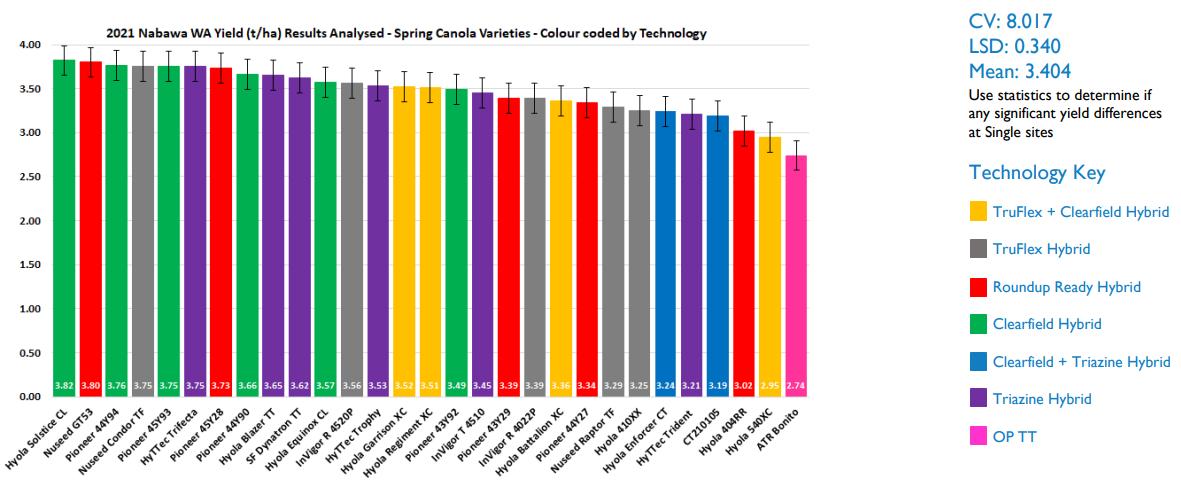

Colorful bar chart with many vertical bars and a legend on the right, showing values close together.
Aerial view of a large crop field with neat green rows and pinkish soil borders

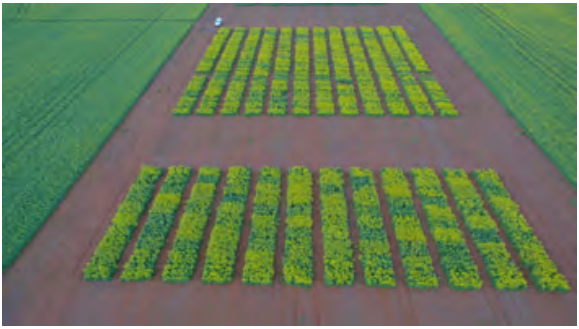

Aerial view of rectangular crop plots with green plants separated by brown soil paths in a field
Yellow flowers blooming in a green field under a cloudy sky
People walking in a line through tall green grass under a cloudy sky, one wearing an orange vest.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

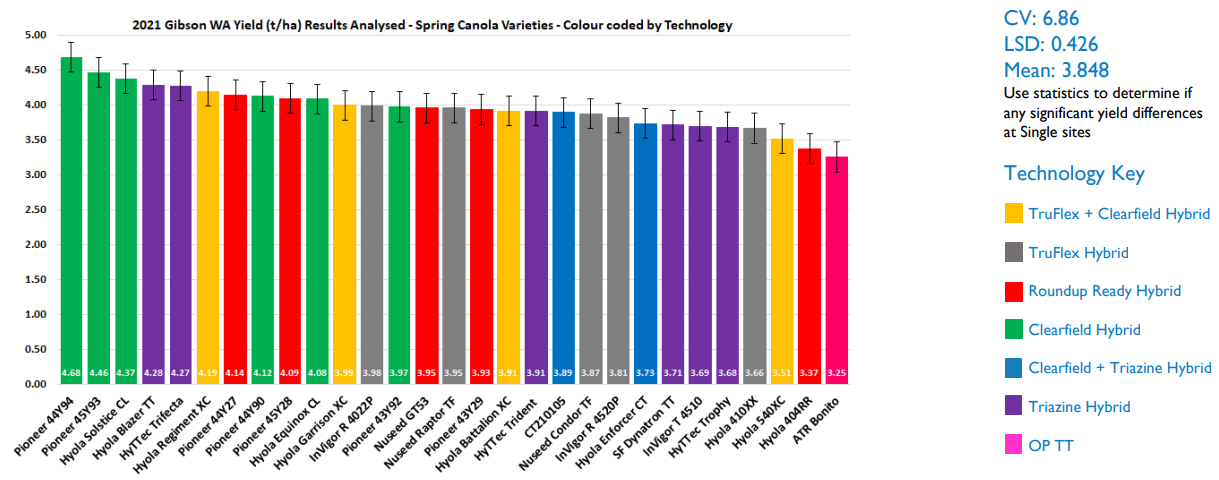

Color-coded bar chart with many vertical bars, a descending trend, and a legend on the right.

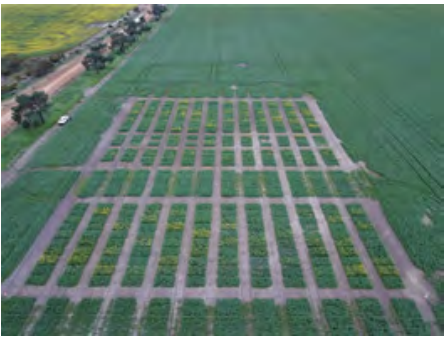

Aerial view of a green field with a grid of raised planting beds and dirt paths
People standing in a yellow flower field under a blue sky, with trees in the background
Aerial view of bright yellow flowering fields with a rectangular grid of raised rows and paths.
Group of people standing under a canopy beside a blue machine with a yellow beam outdoors

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

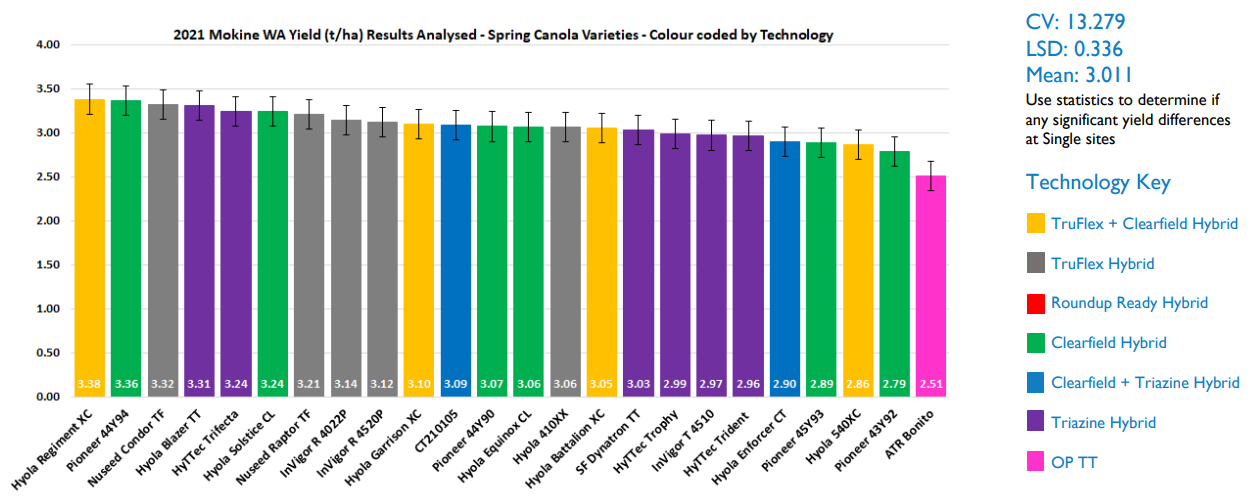

Colorful bar chart comparing multiple categories, with a legend on the right and tilted labels along the bottom.
Aerial view of a green crop field with rows and a white vehicle on the right edge

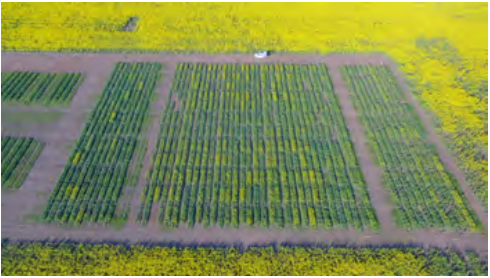

Aerial view of rectangular crop rows in a green field, bordered by bright yellow flowering areas.

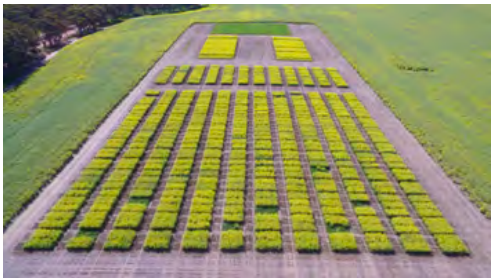

Aerial view of neatly arranged green crop plots in a field, with paths around the perimeter.

HYOLA INNOVATION SYSTEMS TECHNOLOGY TRIAL RESULTS

2021 SINGLE SITE YIELD RESULTS - INTERPRET WITH CAUTION AND USE THE STATISTICS

Colored bar chart comparing rankings across countries with a legend on the right

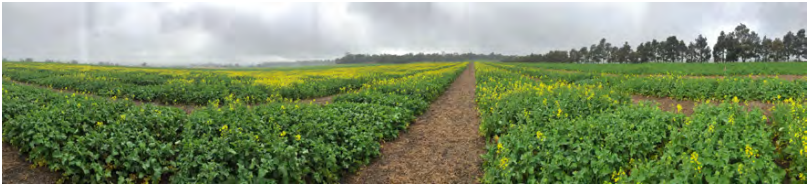

Wide green crop field with a dirt path leading to the horizon under a cloudy sky

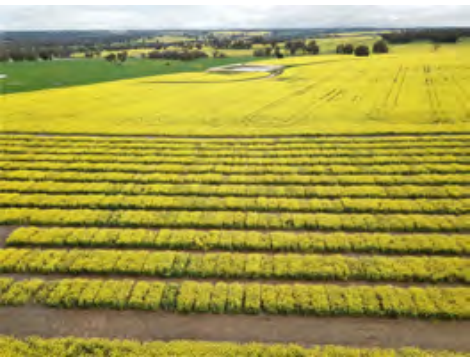

Aerial view of bright yellow crop rows stretching across a flat rural field under a cloudy sky
